VAN DER VALK 20 MT FLY CONTINENTAL II (2013) Usato

Imbarcazione inserita il 04/12/2018 da EFM YACHTS - Imbarcazione visitata 8277 volte.
Imbarcazione aggiornata il 10/01/2019

IDO: 00662656 - Rif:

Cantiere/Modello
VAN DER VALK 20 MT FLY CONTINENTAL II
Categoria
Usato
Lunghezza scafo
20,40 metri (max: 20,40 metri)
Larghezza
5,40 metri
Anno di Immatricolazione
2014
Anno di Costruzione
2013
Velocità Massima
25 nodi
Velocità di Crociera
18 nodi
Dislocamento
38000 Kg
Pescaggio
1,30 metri
HP Fiscali
80
Scadenza Certificazione
2021
Bandiera
OLANDESE
Visibilità
OLANDA
Prezzo
Euro 1.490.000
Note Finanziarie

VAT NOT PAID - BUYER COMMISSION NOT INCLUDED - PRIVATE NEGOTIATION -

Foto imbarcazione

VAN DER VALK 20 MT FLY CONTINENTAL II VAN DER VALK 20 MT FLY CONTINENTAL II VAN DER VALK 20 MT FLY CONTINENTAL II VAN DER VALK 20 MT FLY CONTINENTAL II VAN DER VALK 20 MT FLY CONTINENTAL II VAN DER VALK 20 MT FLY CONTINENTAL II VAN DER VALK 20 MT FLY CONTINENTAL II VAN DER VALK 20 MT FLY CONTINENTAL II VAN DER VALK 20 MT FLY CONTINENTAL II VAN DER VALK 20 MT FLY CONTINENTAL II VAN DER VALK 20 MT FLY CONTINENTAL II VAN DER VALK 20 MT FLY CONTINENTAL II VAN DER VALK 20 MT FLY CONTINENTAL II VAN DER VALK 20 MT FLY CONTINENTAL II VAN DER VALK 20 MT FLY CONTINENTAL II VAN DER VALK 20 MT FLY CONTINENTAL II VAN DER VALK 20 MT FLY CONTINENTAL II VAN DER VALK 20 MT FLY CONTINENTAL II VAN DER VALK 20 MT FLY CONTINENTAL II

Descrizione

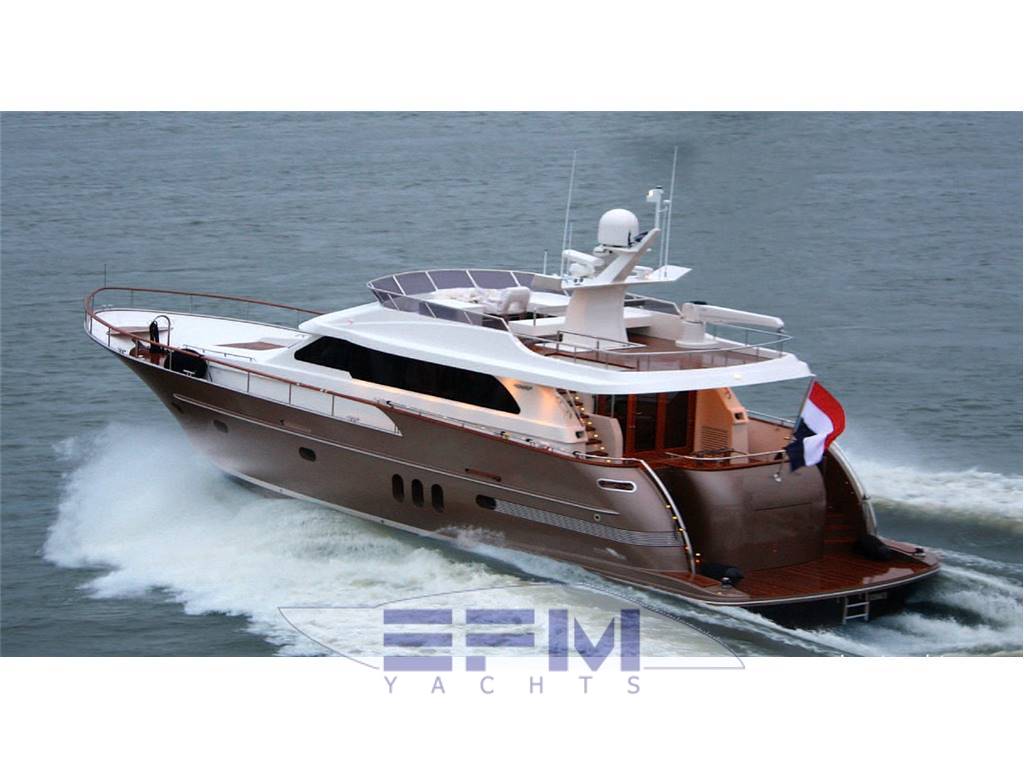

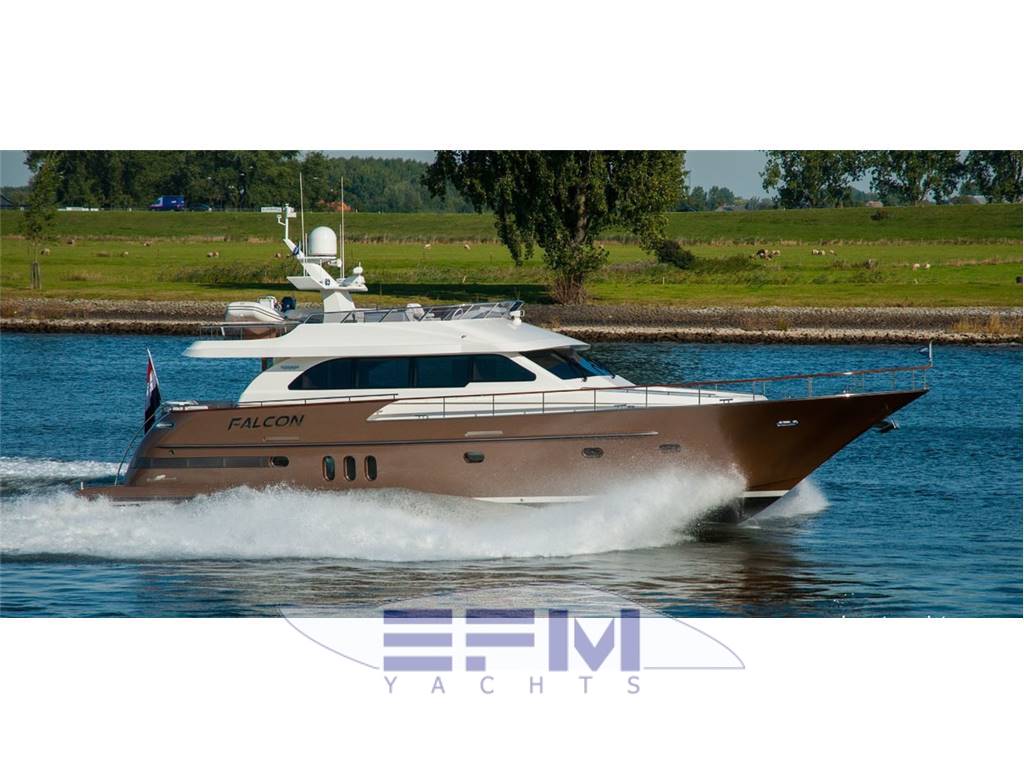

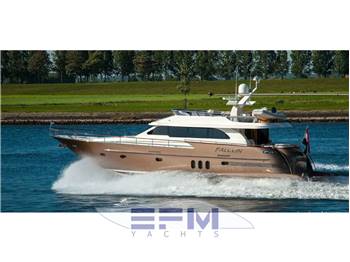

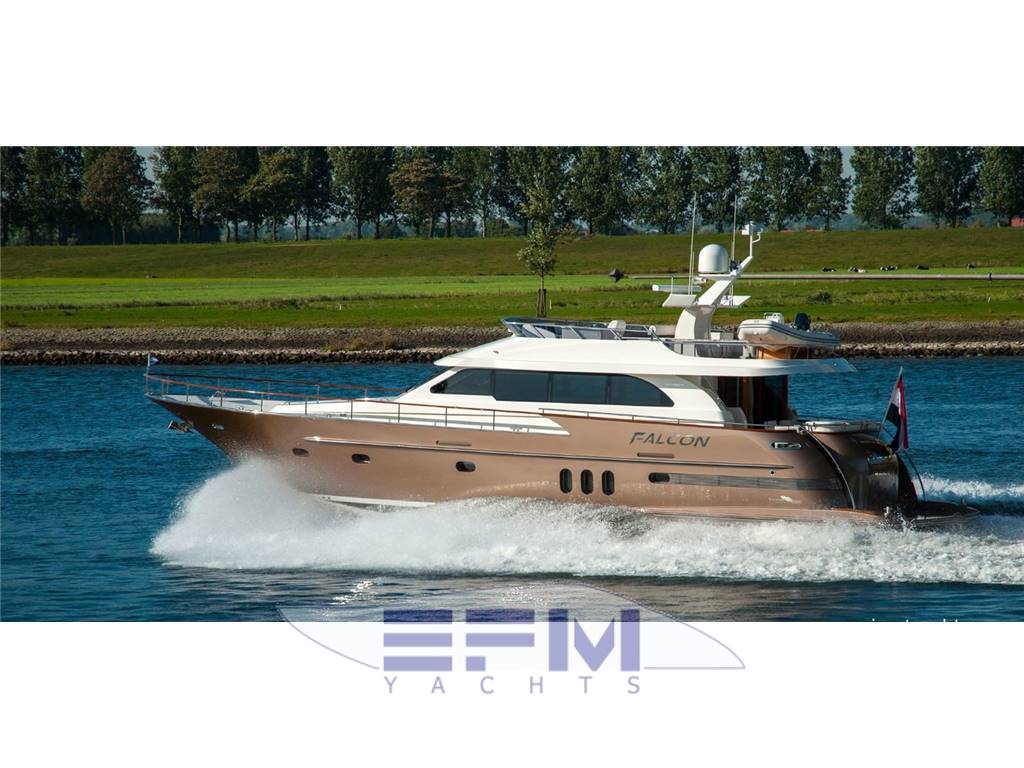

Stunning "as new" 20mt Flybridge mainly built in semi-displacement full aluminium designs.Twin Volvo Penta IPS800 joystick-operated. 3 cabins ensuite
Introduced in 2007, the Flybridge is a two-level model. It was the first series made suitable for the revolutionary Volvo Penta IPS system, a joystick-operated pod-type boat drive system with counter-rotating forward-facing propellers. The Flybridge is mainly built in semi-displacement, full aluminium (hard chine, moderate V hull design) designs, but can also be built in full aluminium fast-displacement (round bilged), aluminium planing (hard-chine, moderate V hull design) or steel full displacement (hard-chine or round bilged) versions.

Combustibili e motori

N° Serbatoi
2
Materiale Serbatoi
ALUMINIUM
Revisione Motori
REGULAR
Capacità Serbatoi
5000 litri
Tipo Carburante
Diesel
Tipo Elica
4 BLADES
Motori

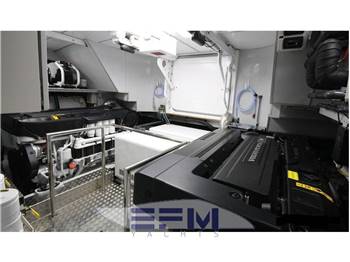

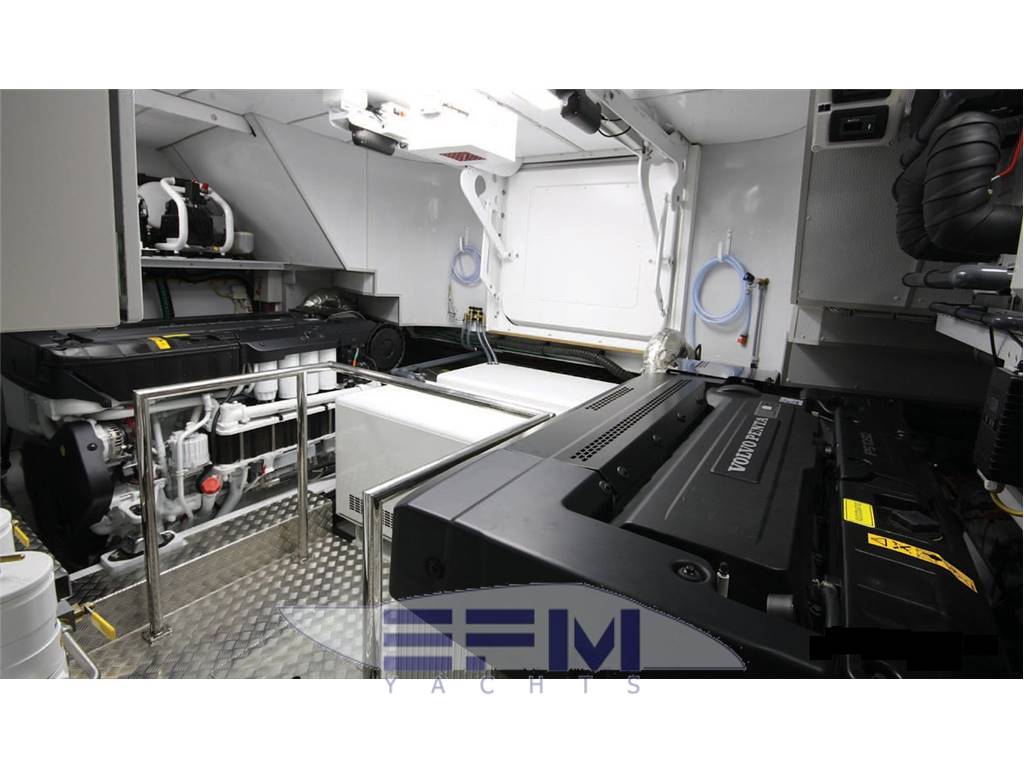

VOLVO PENTA D13 - IPS 800 2 x 600
Ore di moto
780
Trasmissione
IPS IPS 800

Materiale Costruzione

Scafo
ALUMINIUM
Tuga
ALUMINIUM
Coperta
ALUMINIUM

Idraulici

Serbatoi Acqua
1 x 1600 litri
Dissalatore
Presente
Materiale Serbatoi
ALUMINIUM
Autoclave
Presente
Tipo Boiler
220 V + ENGINE
Boiler
Presente

Elettrici

Tensione
12/24/230
Generatore
2 NORTHERN LIGHTS 32 Kw
N° Batterie
11
Carica Batterie
Presente
Capacità Batterie
1650
Inverter
Presente

Descrizione Interni

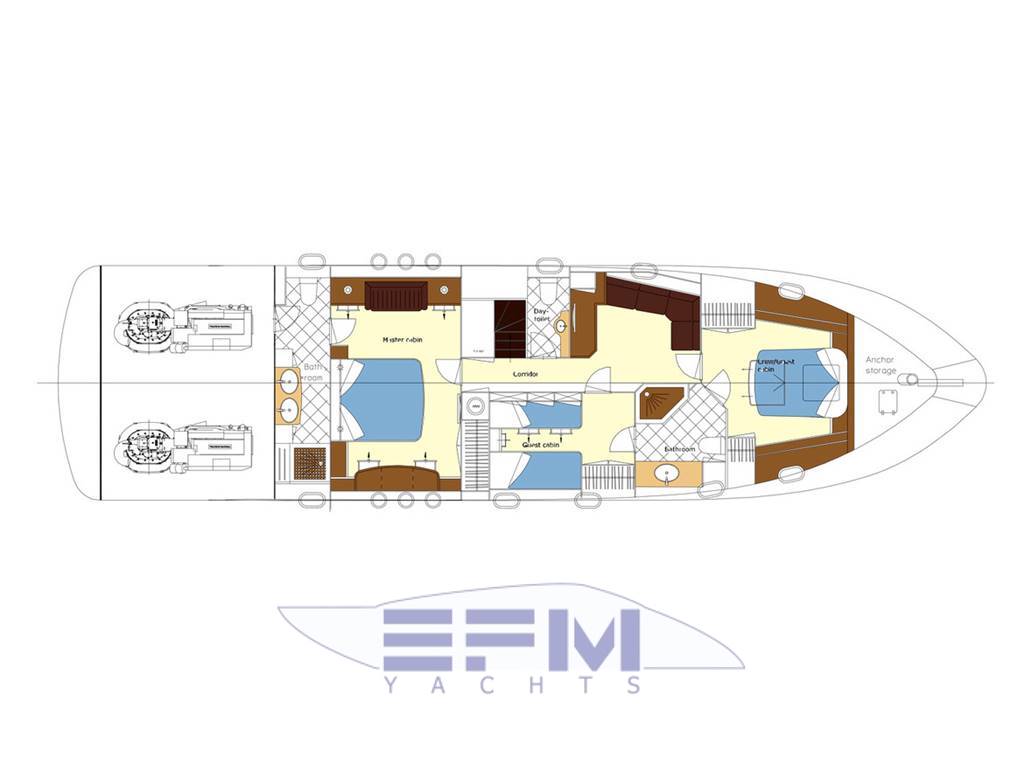

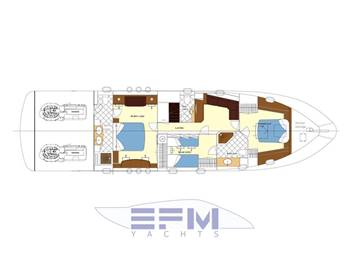

Cabins 3
Berths 6
Head compartments 3

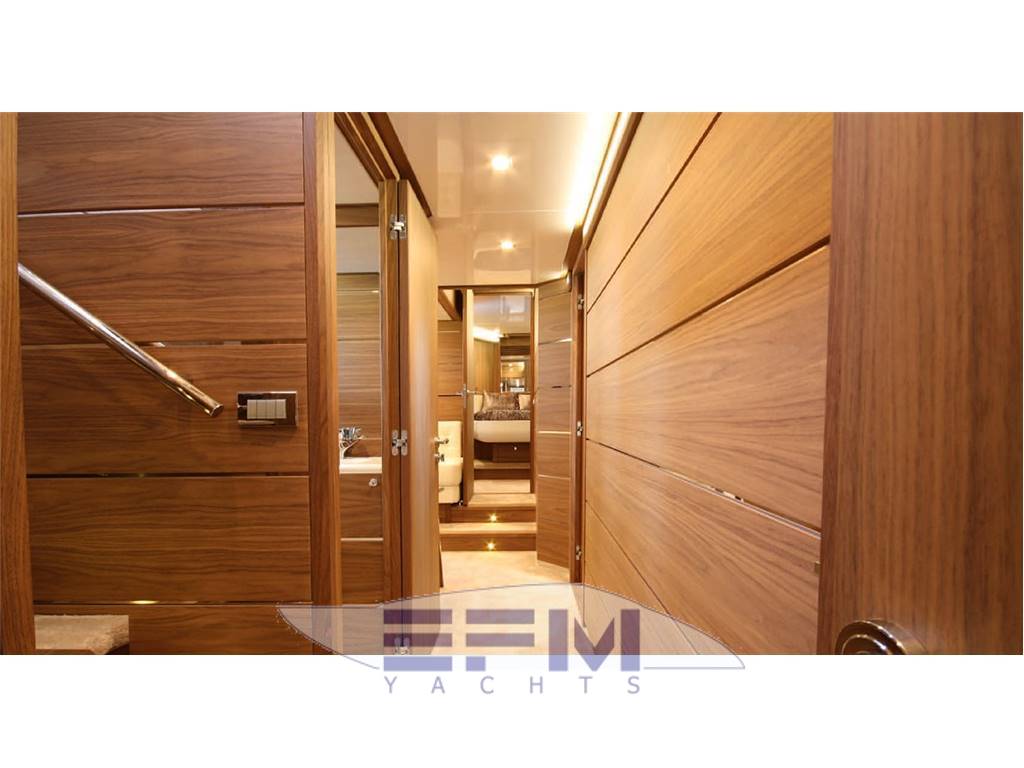

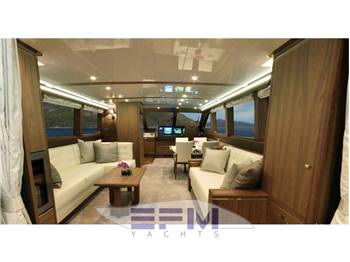

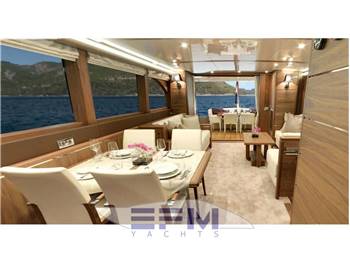

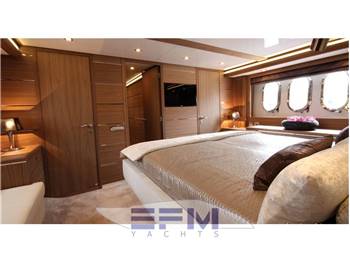

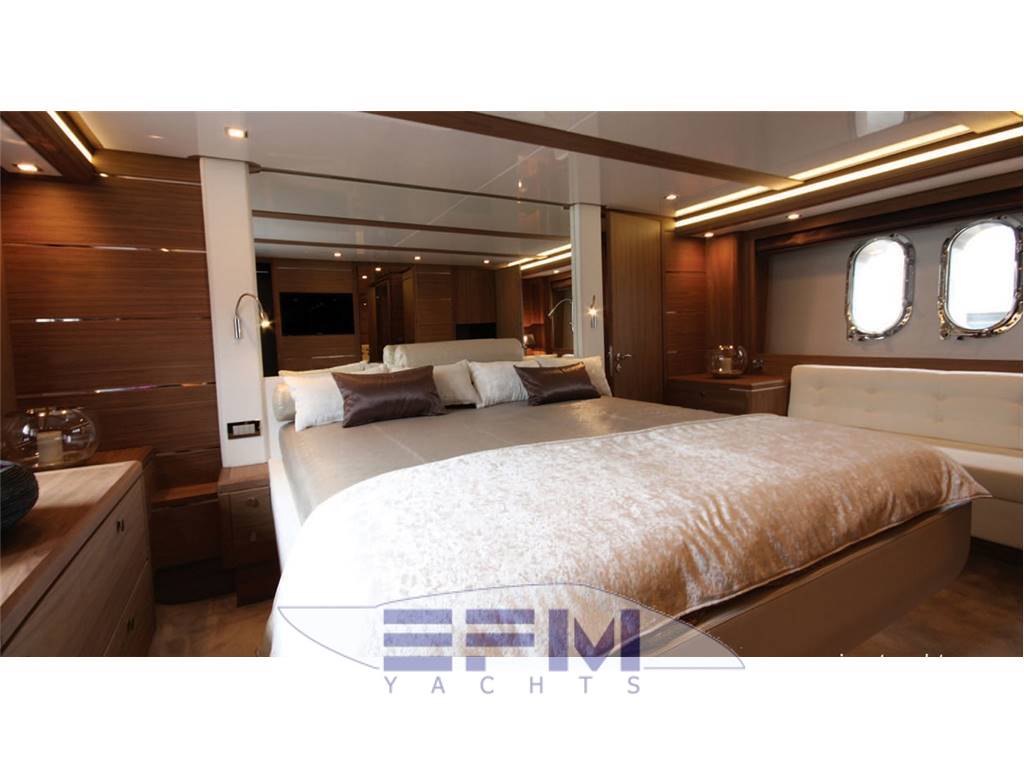

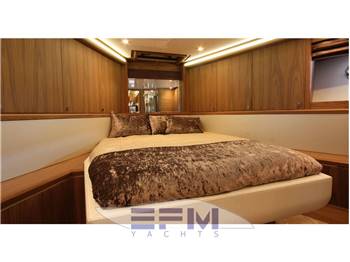

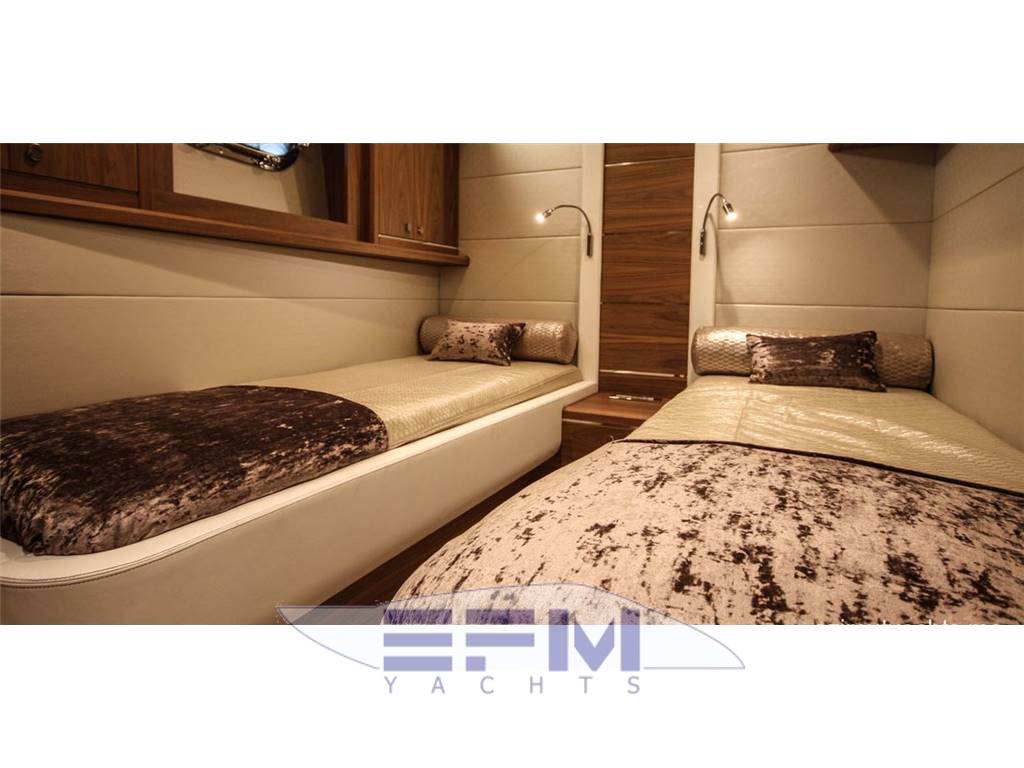

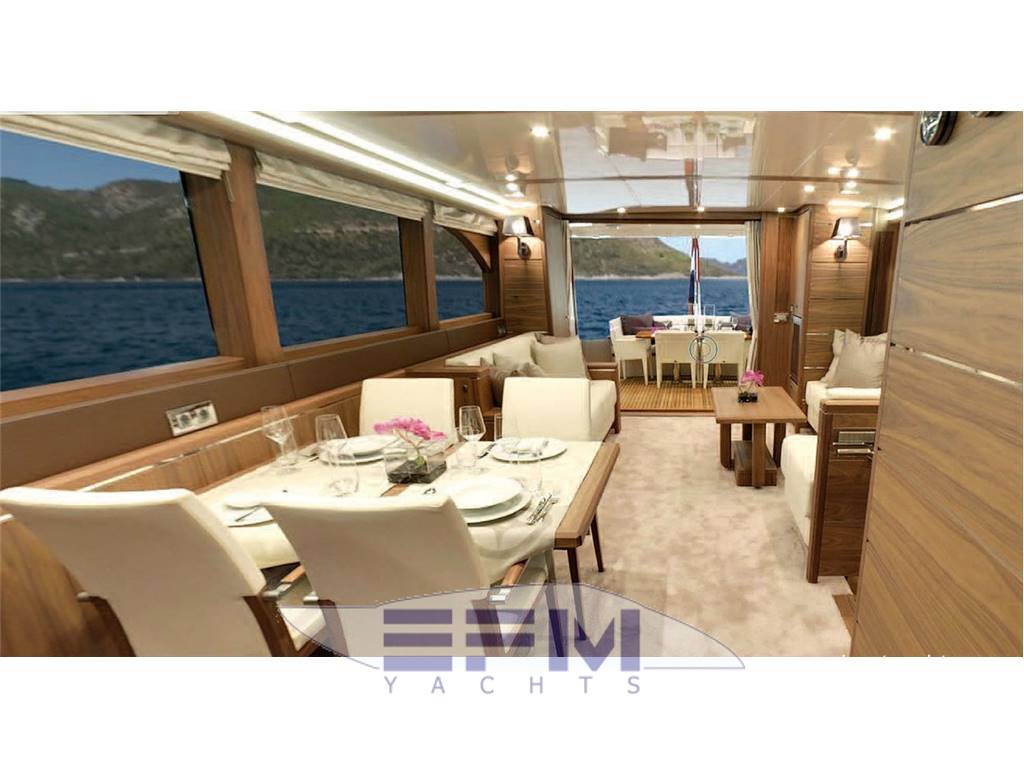

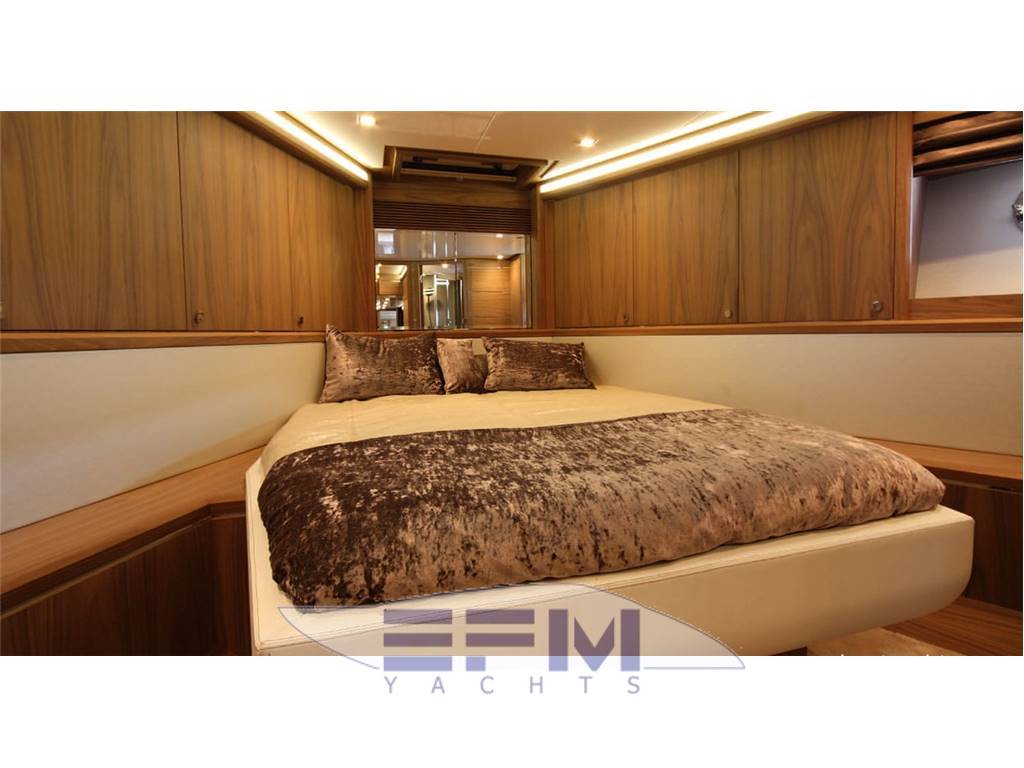

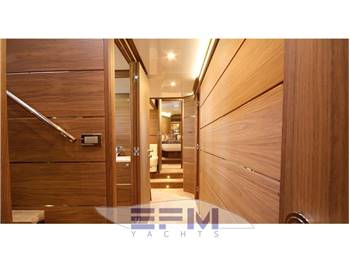

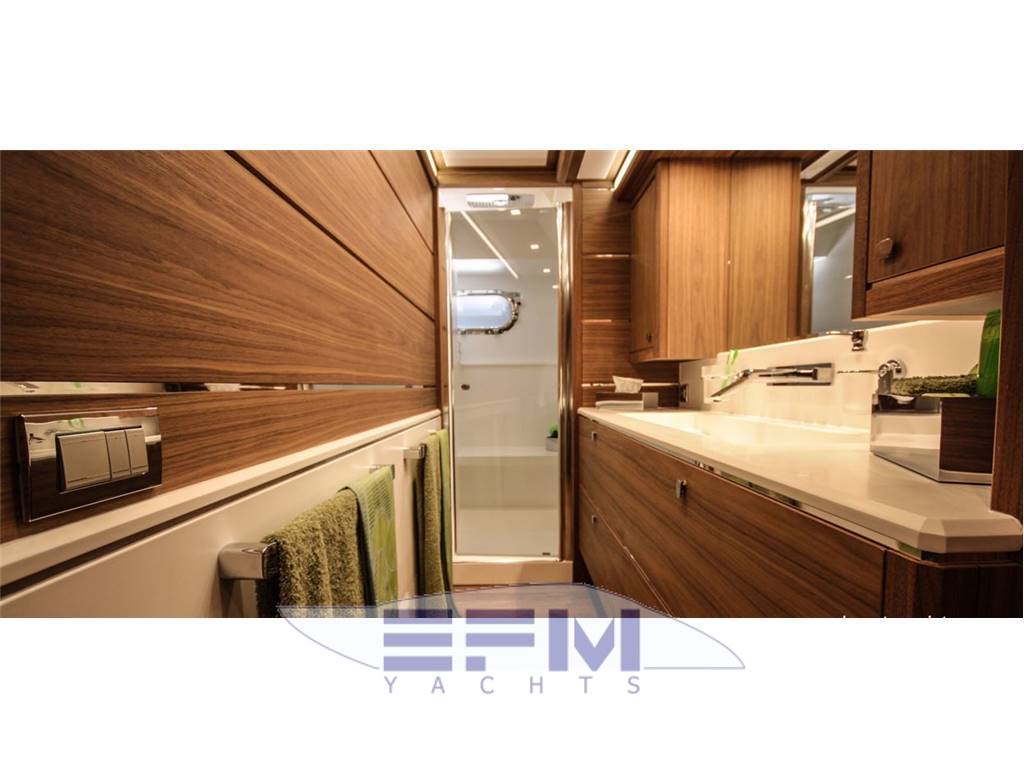

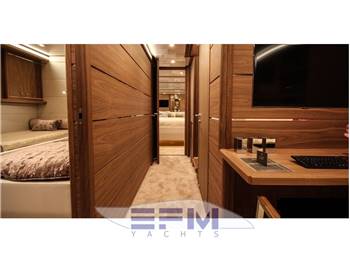

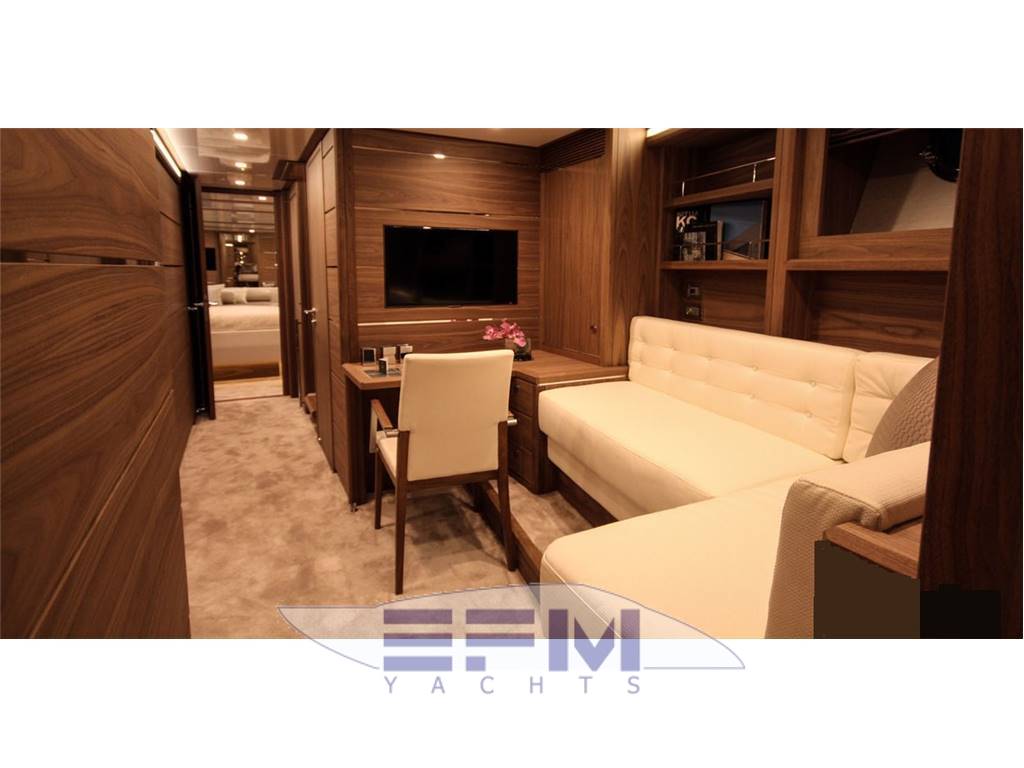

The classical interior consists of cherrywood with mahogany accents, and is characterised by beautiful materials, fabrics and leather upholstery. A traditional nautical colour scheme rests principally on blue & white accents and brass details. The interior very much reflects the choices of the owner, who was highly involved in the design.

Exterior
• Electric trimtab-system (Humphree BETOS)
• Volvo EVC electronic engine control system
• 7” Full Colour Digital Volvo Penta Motor Management System
• Hydraulic NAIAD marine stabilising system
• 2 x extra docking stations in the cockpit
• Dynamic Positioning System (electronic)
• Full “top-quality” Aluminium Hull & Superstructure (special seaworthy shipbuilding Aluminium (AlMg4.5Mn - H321/H111), with certificate)
• High Quality 2-component “paint” system
• Full 15mm massive teak decks, stairs, swimming platform & flybridge
• Large sunbathing area on front deck
• Fender storage incorporated in superstructure
• Electric/Hydraulic operated “Wing design” mast on the fly bridge
• Teakwood wheelhouse doors incl. double glazed security glass (incl. moskito-screen doors)
• Grey tinted double-glazed & hardened security glass windows
• Teakwood steps on outside stairs with built-in LED lighting
• Outside tables in teak wood
• Large entrance/service hatch to engine room on swimming platform
• Wooden floors in galley and bathrooms

Flybridge
• Refrigerator and washbasin
• Storage box for cushions
• Fusion audio system
• Hydraulic Crane for tender boat (Steelhead ES1000 / 450 kgs capacity) (incl. teakwood tender supports)
Ships systems & components (Interior)
• Automatic fire extinguishing system (1 x Firepro FP-3000)
• Extinguisher in Engine Room and 1 x under steering position) plus manual fire extinguishers according to classification demands
• De entire engine room is fitted with a system of professional & high quality sound-dampening materials

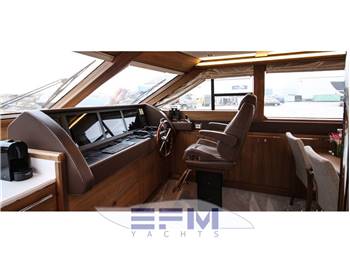

• 1 x High quality electric steering chair (Opacmare Sedile)

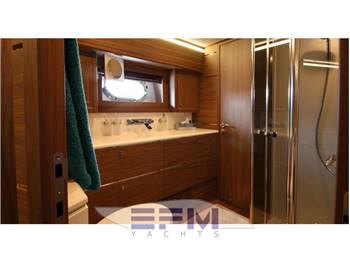

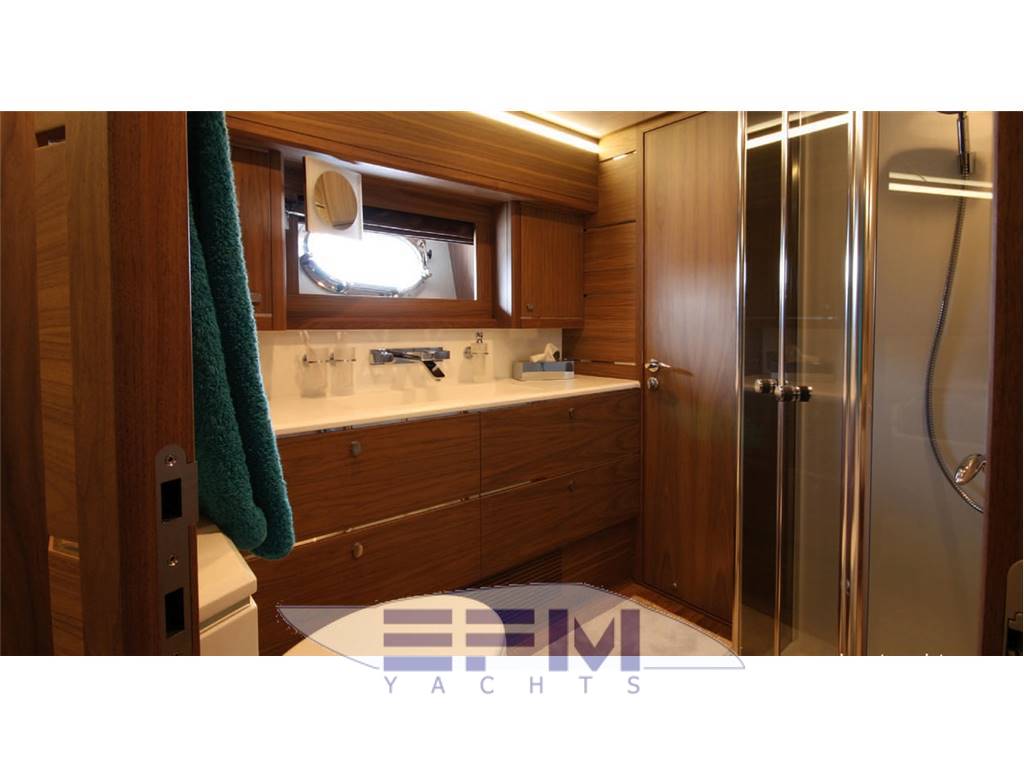

• Corian worktops in galley and bathrooms
• Corian walls in showers and bathrooms
• Wooden floors in galley and bathrooms
• Documents safe in Master cabin

Deck Equipment
• 1 x Searchlight Double Halogen (Jabsco)
• 1 x Double-horned air horn (Kahlenberg D-AO)
• 3 x Double-arm windscreen wipers with adjustable interval and sprayers.(Speich)
• 1 x Loudhailer
• Electric anchor winch (MUIR Storm 4000 24V 2000W) with 100KG St. Steel Pool anchor
• 70m (10mm) St. steel (316) anchor chain and anchor roll
• Deck wash & Anchor wash connection
• BOSE speakers outside on aft deck
• AIS system
• Air compressor in engine room
• Liferaft located on flybridge

Descrizione Armamenti

Air Conditioning
• “Marvair” Full auto-reverse tropical airco system (72.000 BTU) with chillers in engine room. Per area separately controllable.

Heating System
• Floor heating throughout the ship (each area and cabin separately controllable)
• Diesel heater (Kabola KB50 ecoline) for heating and hot water system

Fuel System
• Double diesel filters (Volvo Penta 877770) (2 filters per engine)
• Volvo Lucas filters for Kabola & Genset

Fresh water System
• PE watertanks (1600 l.)
• Water-pump (Gianeschi JET 4B C.E. water pressure system)
• Drinking water desinfection system (HP watersystems UV-5000 steriliser)

Waste water System
• PE waste water tank (500 l.) with extracting possibility and overflow security
• Tank level meter
• Electric toilets/bidets (Planus)
• Grey/Black water pump (Gianesshi WASTE PUMP MV 44G 24V / 50L/MIN.)
• Shower pumps (Planus Aqualift)

Bilge System
• Bilge pumps (4 x 14.000 L/Hour (Jabsco 3500)
• 1 x manual Bilge Pump (Jabsco Ocean Warrior)

Domestic Appliances
• Refrigerator, freezer, wine cooler
• Ceramic cook top, combi oven
• Extractor fan
• Washing & dryer machines
• Dishwasher
• Instant boiling water tap/system in galley (Qooker system)
• Ice maker
• BEAM central vacuum cleaning system

Descrizione Strumentazione

Navigation Lighting
• 1 x Navigation lights system for yachts up to 50 meters. (Lopolight LED)
• 1 x Searchlight Double Halogen (Jabsco)

Entertainment and internet System
• 1 x satellite TV system (KVH M7)
• Bose Lifestyle extension to aft deck
• 1 x Bose Dolby Surround Audio/CD/DVD/Bluray system & 1 x LED Flatscreen television 42 inch Samsung in salon
• 1 x LED Flatscreen television Samsung in master cabin
• 1 x LED Flatscreen television Samsung in study area
• 1 x UMTS incl. WiFi system (Wireless internet connection)

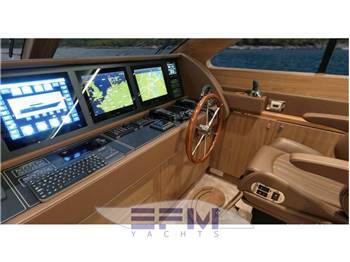

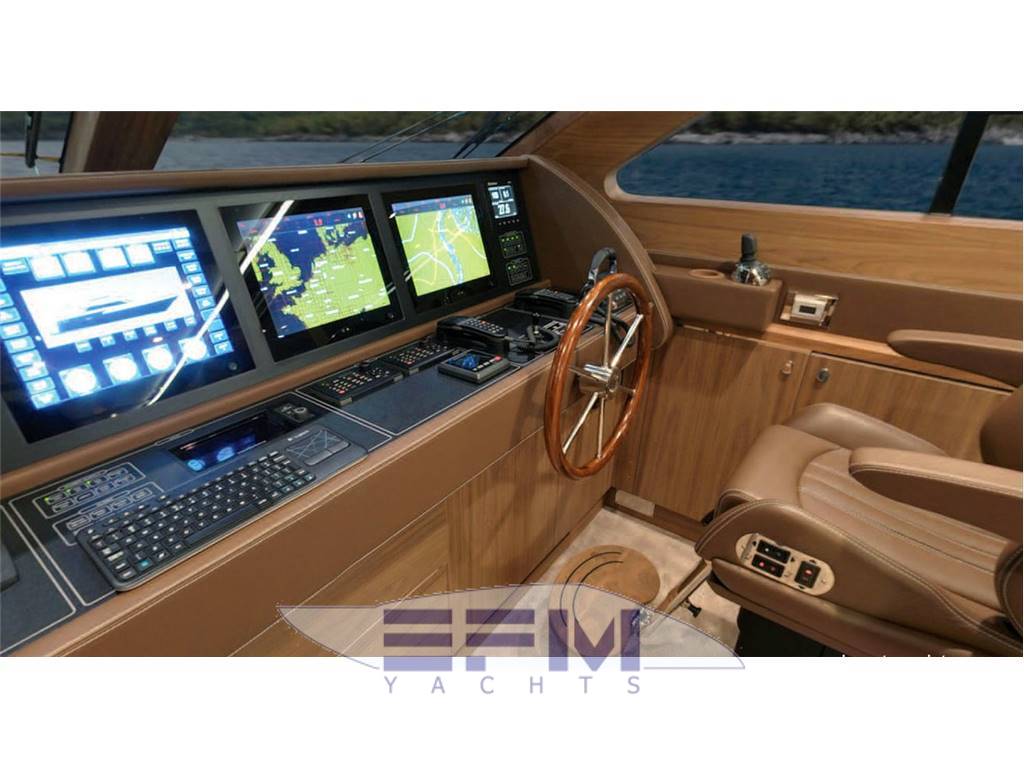

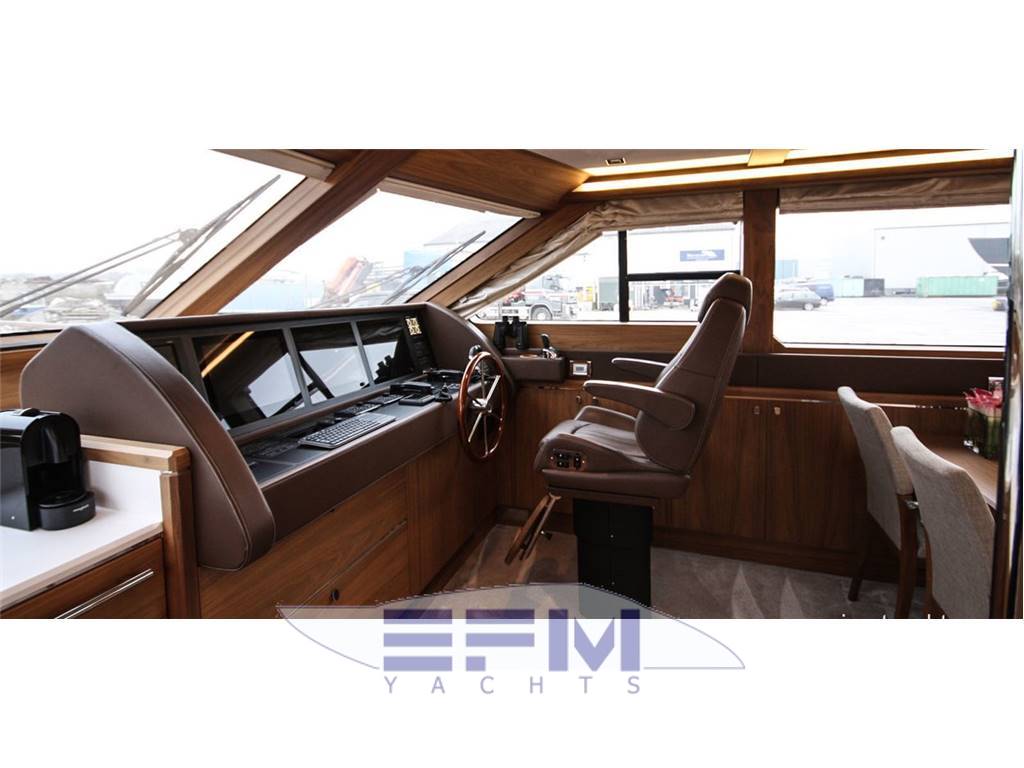

Navigation Systems
• 1 x Volvo Penta autopilot
• 2 x SIMRAD NSO OP40 controller
• 1 x SIMRAD TX06s open array 6kW radar
• 1 x SIMRAD NAIS 300 black box
• 2 x SIMRAD RS82 VHF radio
• 2 x Digital multifunctional 5-6 inch DSM250 maretron
• 1 x GPS sensor
• 1 x Dept/speed sensor
• 1 x Wind sensor
• 1 x Volvo Penta GPS compass
• 1 x Volvo Penta 7 inch motor management display
• Maritime PC on main helm station
• 3 x 15 inch Glassbrige monitor

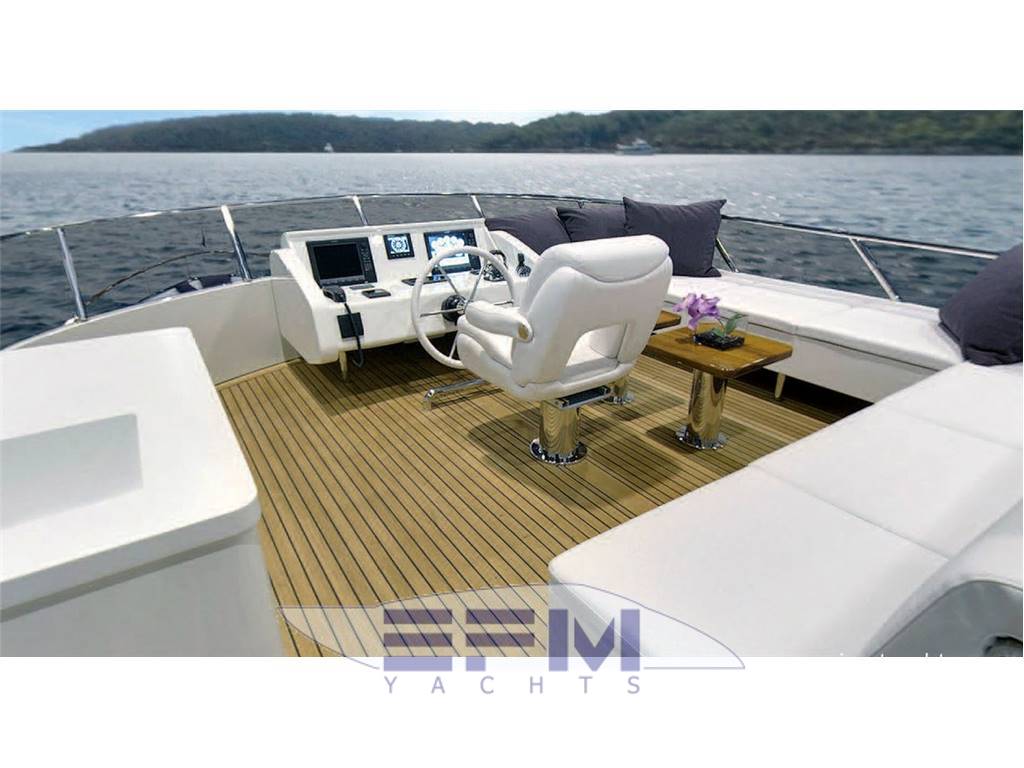

Navigation Systems Flybridge
• 1 x Volvo Penta autopilot
• 2 x SIMRAD NSE12 displays
• 1 x SIMRAD RS82 VHF radio
• 1 x Digital multifunctional 5-6 inch DSM250 maretron
• 1 x Volvo Penta 7 inch motor management display

Camera System
• 1 x Camera aft
• 1 x Camera in engine room

Note Aggiuntive

Generators
• 2x Northern Lights sound damped 1500 rpm 16 kvA 230 Volt AC

Battery Sets
• 1 x 24 Volt 1000 amp/H (2 volt cells for general use/operation (service batteries))
• 3 x 24 Volt 160 amp/H type AGM (for main engines)
• 1 x 12 Volt 90 Amp/H type AGM (for generator)

Chargers
• 2 x Mastervolt 24V 200 amp. (for service batteries)
• 1 x Mastervolt 24V 40 amp. (for engine batteries)
• 1 x Mastervolt 12 V 10 amp (for genset batteries)

Electric Systems & Components
• Vessel monitoring, control and digital switching system (iPad compatible). Decentralized CAN-bus based DC power distribution system with the following options:
• Electronic fuses
• Membrane panels on dashboard
• Interior and exterior lighting control, scene programmable
• Navigation lights switching and control
• Bilge Pump control and alarm
• Grey water pump control and alarm
• Fresh water pumps switching and control
• Window wiper switching and control
• Tank measuring control
• Advanced lighting control
• Dimming functionality for all channels
• Very easy control with manual override possibility

Inverter / Charger (Combi)
• 1 x 5 kw inverter 24/230 Volt

Shore power Connection
• 1 x 230 volt 32 amp
• 1 x 230 volt 16 amp
• Isolation transformer

Switch panels 230 volt
• Switch panels have been equipped with “double pole” fuses and where necessary “earth fault” and “engine protection systems”. The switching between shore, generators and inverter is fully automatic and “fool proof”
• A 230v indication - monitoring system is mounted in the steering position

Electrolysis
• The ship is equipped with an Isolation transformer which will normally delete any risk of electrolysis. However as back up the ship is equipped with an earth fault measuring system equipped with alarm function. Should the ship find itself in an “electrically polluted” environment then the system will indicate this via an alarm.

Switch panels 24 Volt
• A main switchboard is mounted in the engine room en is equipped with “double pole” fuses and where necessary engine security switches. Also a professional “earth fault” monitoring system is installed
• A 24 volt dc indication & monitoring system is installed in the steering position

• All other used materials and components such as plumbing materials, cocks, valves, (weed) filters, cables, couplings etc. are of professional and top-quality and according to all classifiation demands. Furthermore a very clear, extensive owner’s manual is included.
• The ship is built and approved according to CE-class A (Ocean)
