Azimut 86s (2006) Usato

Imbarcazione inserita il 09/09/2014 da Y P International - Imbarcazione visitata 3595 volte.
Imbarcazione aggiornata il 24/01/2017

IDO: 227660 - Rif: MY00009

Cantiere/Modello

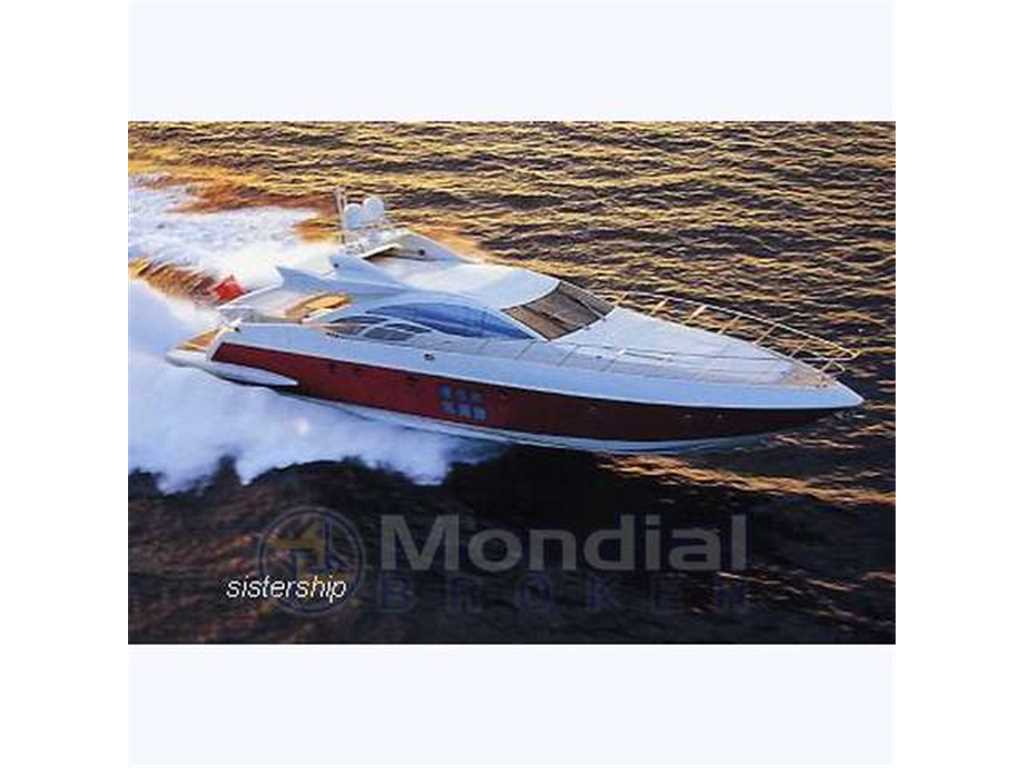

Azimut 86s
Categoria
Usato
Lunghezza scafo
26,00 metri
Larghezza
5,00 metri
Anno di Immatricolazione
2007
Anno di Costruzione
2006
Velocità Massima
45 nodi
Velocità di Crociera
40 nodi
Dislocamento
55000 Kg
Pescaggio
--
HP Fiscali
--
Scadenza Certificazione
--
Bandiera
--
Visibilità
West Mediterranean
Prezzo
Trattativa Riservata
Note Finanziarie

Priced for quick sale! IVA versata

Foto imbarcazione

Descrizione

Priced to sell! Viewing highly recommended.

Combustibili e motori

N° Serbatoi
--
Materiale Serbatoi
--
Revisione Motori
--
Capacità Serbatoi
7200 litri
Tipo Carburante
Diesel
Tipo Elica
--
Motori
MTU V16 2000 M 91 V16 2000 M 91 2 x 2000HP
Ore di moto
--
Trasmissione
--

Materiale Costruzione

Scafo
Fiberglass
Tuga
--
Coperta
TEAK

Idraulici

Serbatoi Acqua
2 x 1100 litri
Dissalatore
Presente
Materiale Serbatoi
--
Autoclave
Presente
Tipo Boiler
--
Boiler
Presente

Elettrici

Tensione
--
Generatore
KOHLER 17 Kw
N° Batterie
--
Carica Batterie
Presente
Capacità Batterie
960
Inverter
Presente

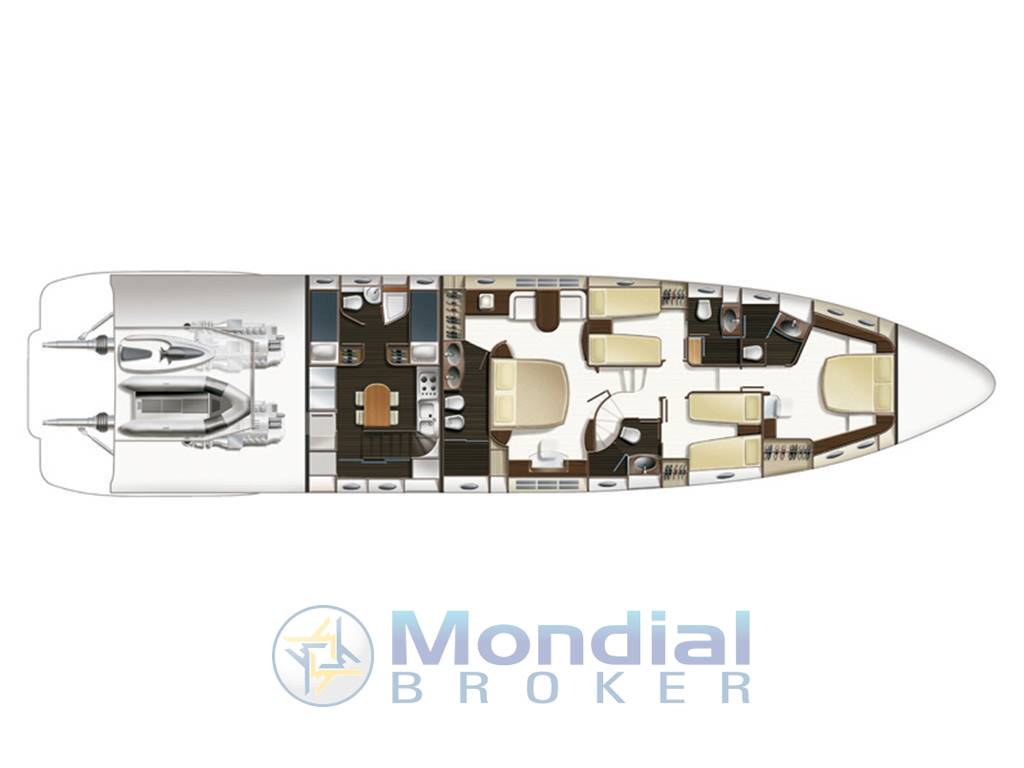

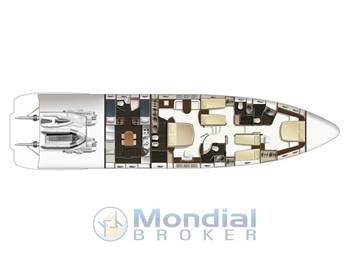

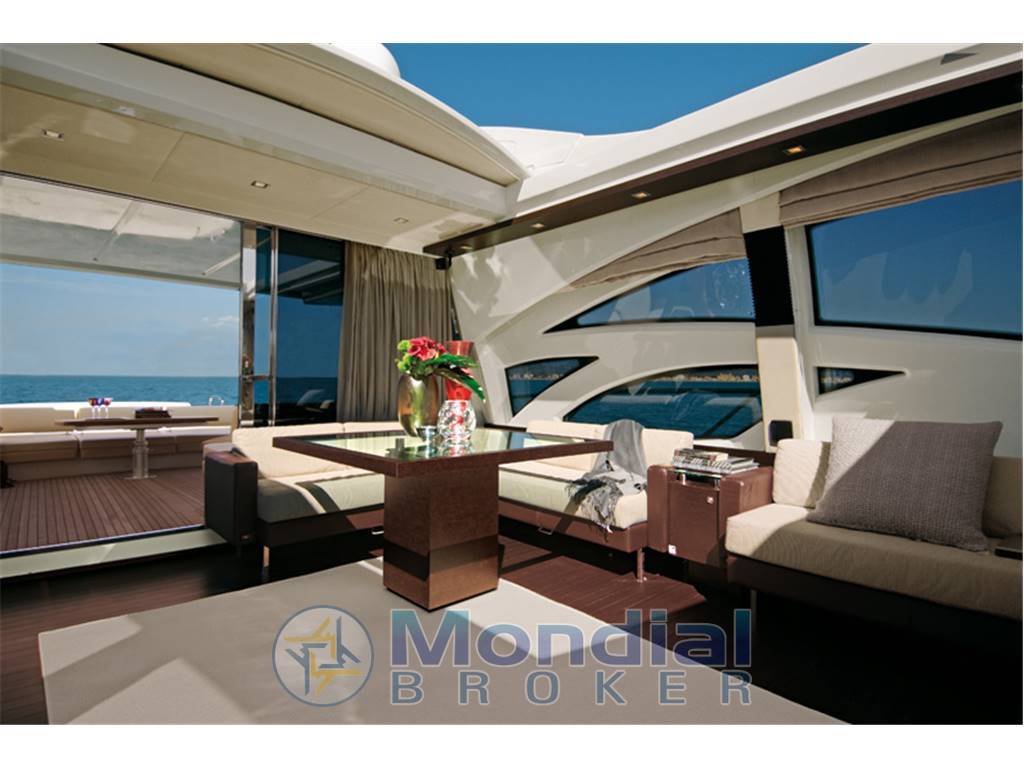

Descrizione Interni

Cabine: 4 + crewCuccette: 8 + crewCompartimenti Responsabile: 4 + crew
Master cabin (Midship)
Double bed with fcam mattress
Indirect lightning underneath the bed
Spotlight on ceiling
Two nightstands
Reading light
Sony home theatre wit CD/DVD player

VIP cabin forward
Double bed with foam mattress
Indirect lightning underneath bed
Spotlights on ceiling

Guest cabins - Twin berths (port and starboardside)
Twin berths with foam mattresses
Indirect lightning underneath beds
Spotlights on ceiling
Nightstand
Reading lights

Descrizione Armamenti

Main engines
MTU 16V 2000 M91 2000 HP
Diesel engines sixteen cylinders.
Displacement 1.99 lt. , stroke 150 bore 130 mm Hour meter on engines.

Reversing-reductioning groups
ZF BW 2550 VP, reduction rate 2.333 lt.

Gearbox and steering configuration
Arneson Drive ASD15
Hamilton water jets

Propellers
NiBrAl Alloy five blades, designed and built to optimize hull performances, to guarantee good comfort during sailing.

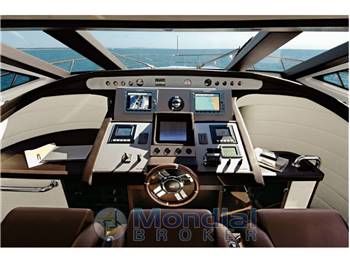

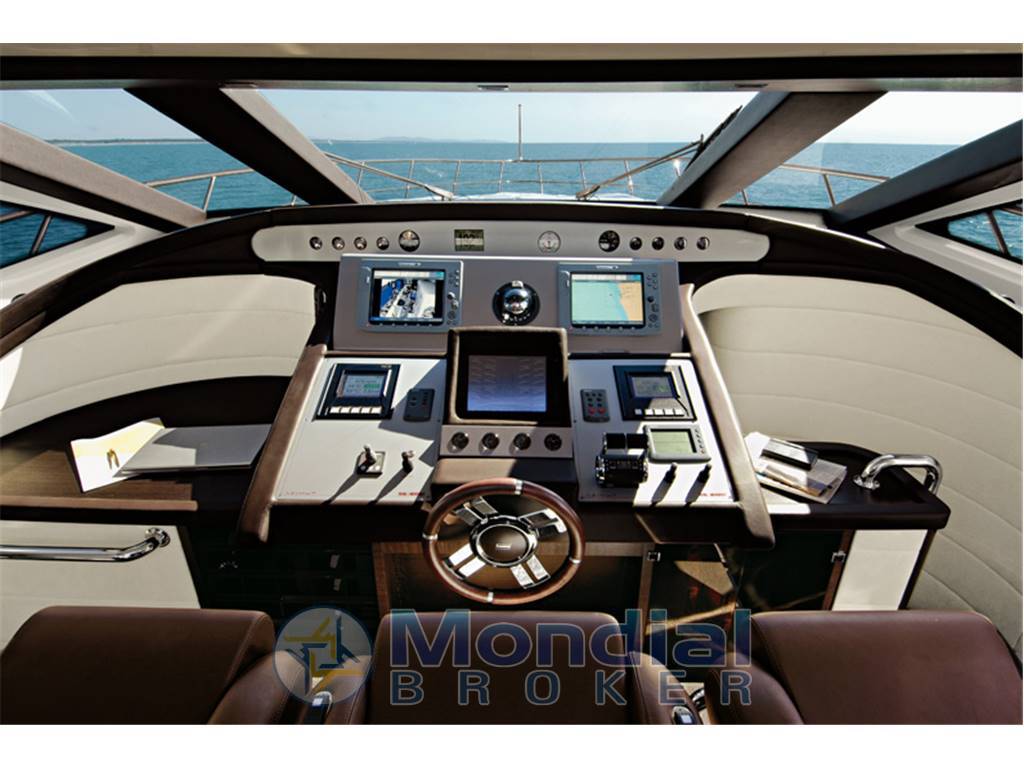

Descrizione Strumentazione

ELECTRONICS
N.1 VHF Raytheon RAY 240E DSC
N.1 Radar Plotter 2.1” color display Raytheon E 120RC
N.1 Raytheon autopilot ST 290 Keypad
N.2 Rudder anologic repeater Raytheon
N.1 Depth and speed indicator actoheim ST 290 System pack
N.1 GPS antenna Raystar 120 WAAS/EGNOS

Note Aggiuntive

Generators
Two 17.5 kw Kholer generators (220 V 50 Hz) located in engine room with hour meter and mounted on silent blocks.
Sound shiled boxes, control panel
Remote starter for generator

Shore Power
One 220 v, 63 A, 50 Hz, shore outlet placed on the transom.
Alternating current power sources run to the main electrical panel in engine room provided with voltmeter and frequency meter for 220V power grid. Power sources are protected by calibrated fuses and their connection with the line is accomplished by remote control switches. There is one bar system only that breads current all users. Each user is singly protected by magneto/thermal switches.

Batteries
Group of 24V leaded batteries 960 Ah. Lighting signaling, power source, little sources and emergency. Batteries are positioned underneath aft staircase, with explosion proof extractor device.
Group of 24V leaded batteries 500Ah for main engine starters in engine room.
Two 12V leaded batteries 105Ah for generators starters
24V leaded batteries 105 Ah for MTU electronics
One automatic Mastervolt battery chargers 100Ah for services batteries, emergency main engine starters batteries and MTU electronics batteries.
One automatic Mastervolt battery chargers 30 ah for generators starters batteries.
Lines for 24V d.c. users coming from main panel, are protected by magneto-thermic switches or fuses.

"Dati ritenuti corretti, ma non contrattuali. La presente non costituisce, in nessun caso, documento contrattuale."
