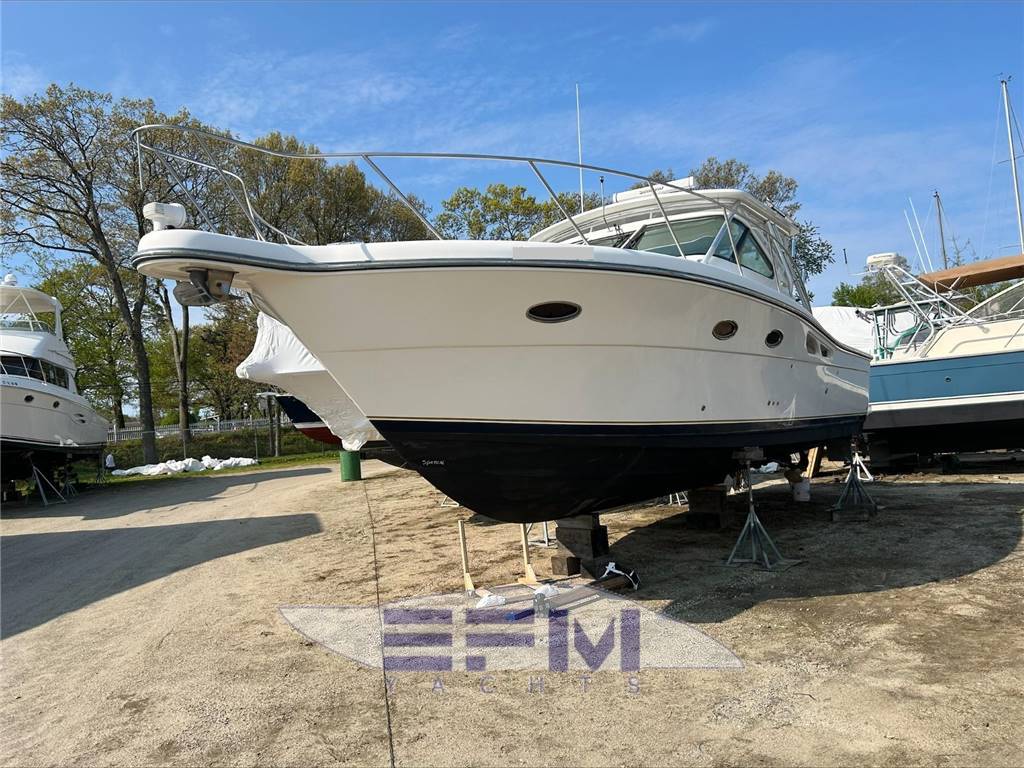

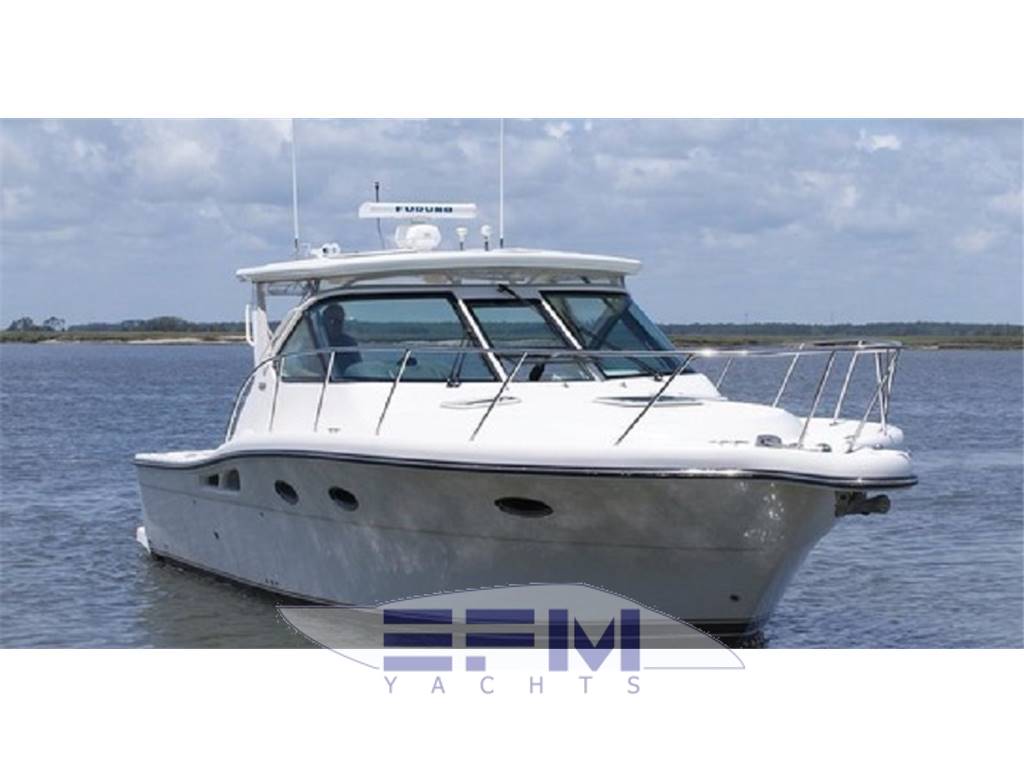

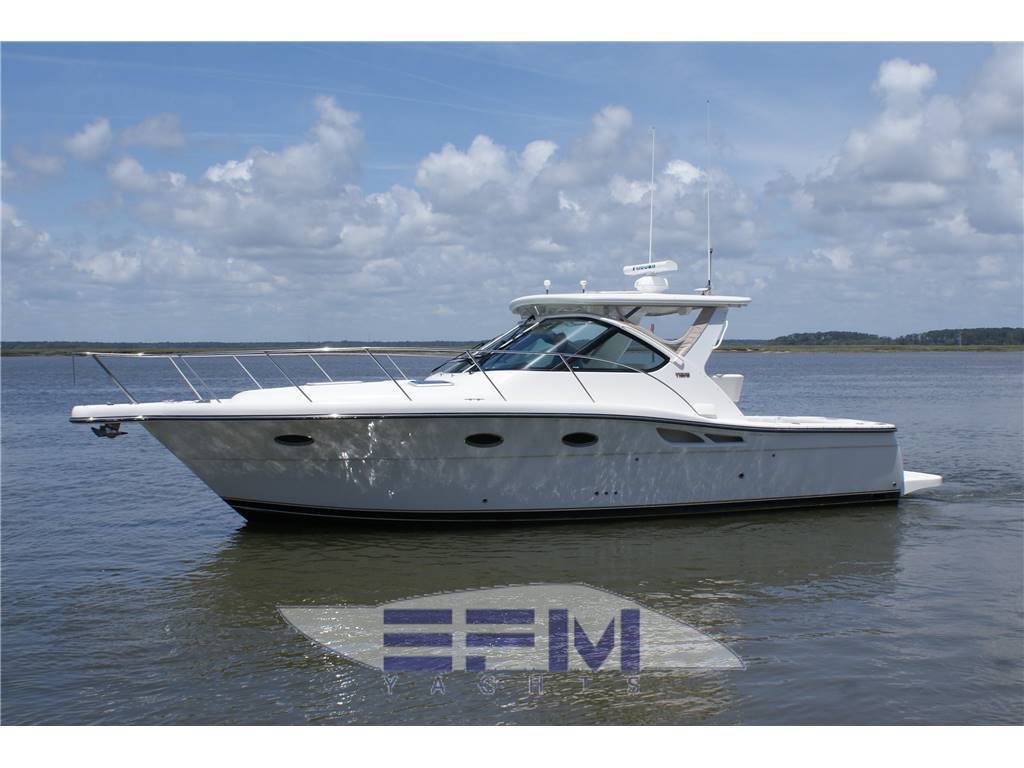

TIARA 3200 (2007) Usato

Imbarcazione inserita il 23/06/2023 da EFM YACHTS - Imbarcazione visitata 5101 volte.

IDO: 00875737 - Rif:

Cantiere/Modello
TIARA 3200
Categoria
Usato
Lunghezza scafo
9,85 metri (max: 10,70 metri)
Larghezza
4,00 metri
Anno di Immatricolazione
2007
Anno di Costruzione
2007
Velocità Massima
30 nodi
Velocità di Crociera
24 nodi
Dislocamento
9400 Kg
Pescaggio
0,90 metri
HP Fiscali
68
Scadenza Certificazione
2023
Bandiera
NATANTE
Visibilità
CT
Prezzo
Trattativa Riservata
Note Finanziarie

PRIVATE NEGOTIATION - BUYER COMMISSION NOT INCLUDED

Descrizione

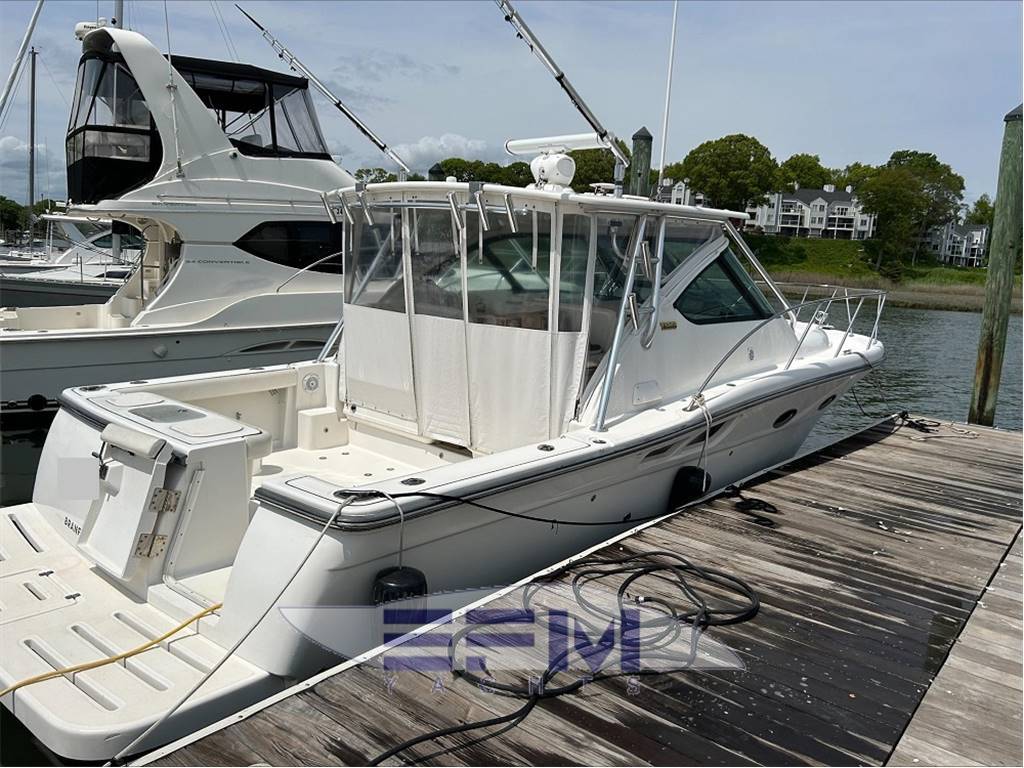

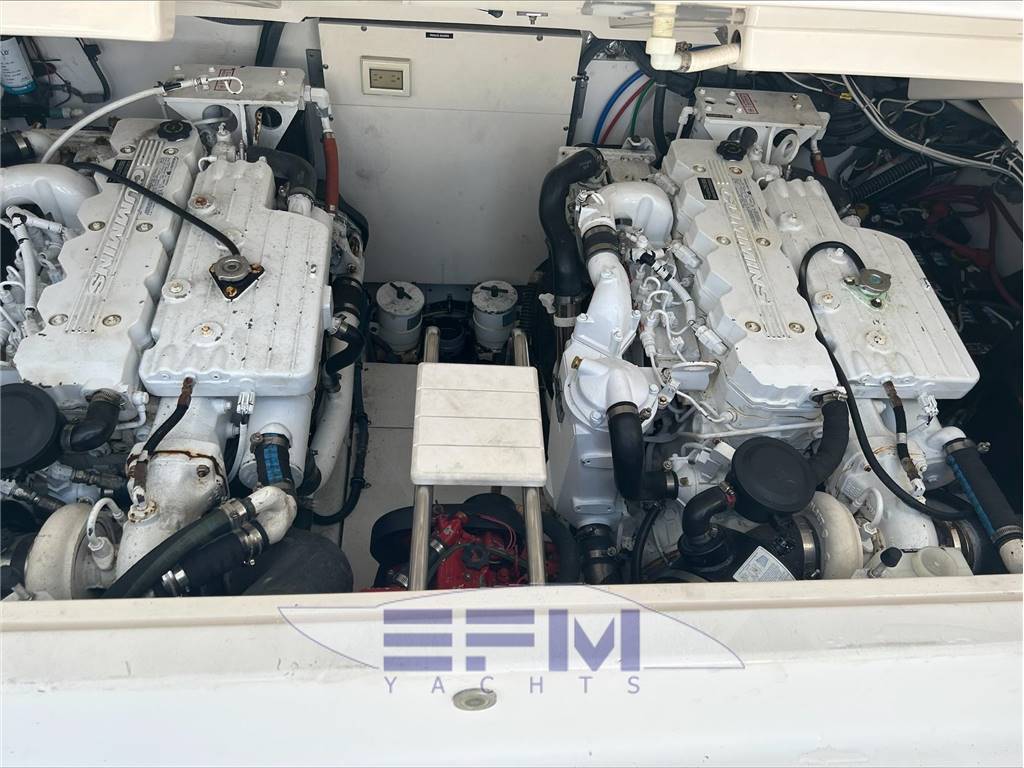

This is a meticulously Tiara 3200 powered by the very reliable Cummins QSB 370hp Diesels with 930 hrs.1000 HOUR SERVICE JUST COMPLETED, Tournament Hardtop, 2 hatches with a full enclosure, Power helm seat, Swivel Companion/L-Lounge Seat, swim platform with ladder, Transom livewell, Macerators for head and fishboxes, 15" TV, Westerbeke Diesel Generator and an extensive electronics package to include the following; Simrad 12" MFD, Simrad 8" MFD, Simrad 3' Open Array Black Box Radar, Simrad Black Box Fish Finder w/CHIRP and 50/200 transducers, Simra AP28 Autopilot, Furuno RD33 MFD/Digital Depth, ICOM M506 VHF, ACR RCL 50 Remote Spotlight, Clarion stereo with AM/FM/CD with Remote.

Combustibili e motori

N° Serbatoi
2
Materiale Serbatoi
INOX
Revisione Motori
JUST SERVICED
Capacità Serbatoi
1000 litri
Tipo Carburante
Diesel
Tipo Elica
4 BLADES
Motori
CUMMINS QSB 2 x 355
Ore di moto
900
Trasmissione
Linea d'asse SHAFT

Materiale Costruzione

Scafo
GRP
Tuga
GRP
Coperta
GRP

Idraulici

Serbatoi Acqua
1 x 300 litri
Dissalatore
Non Presente
Materiale Serbatoi
PVC
Autoclave
Presente
Tipo Boiler
220 + ENGINE
Boiler
Presente

Elettrici

Tensione
12/24/230
Generatore
WESTERBEKER 5 Kw
N° Batterie
5
Carica Batterie
Presente
Capacità Batterie
580
Inverter
Presente

Descrizione Interni

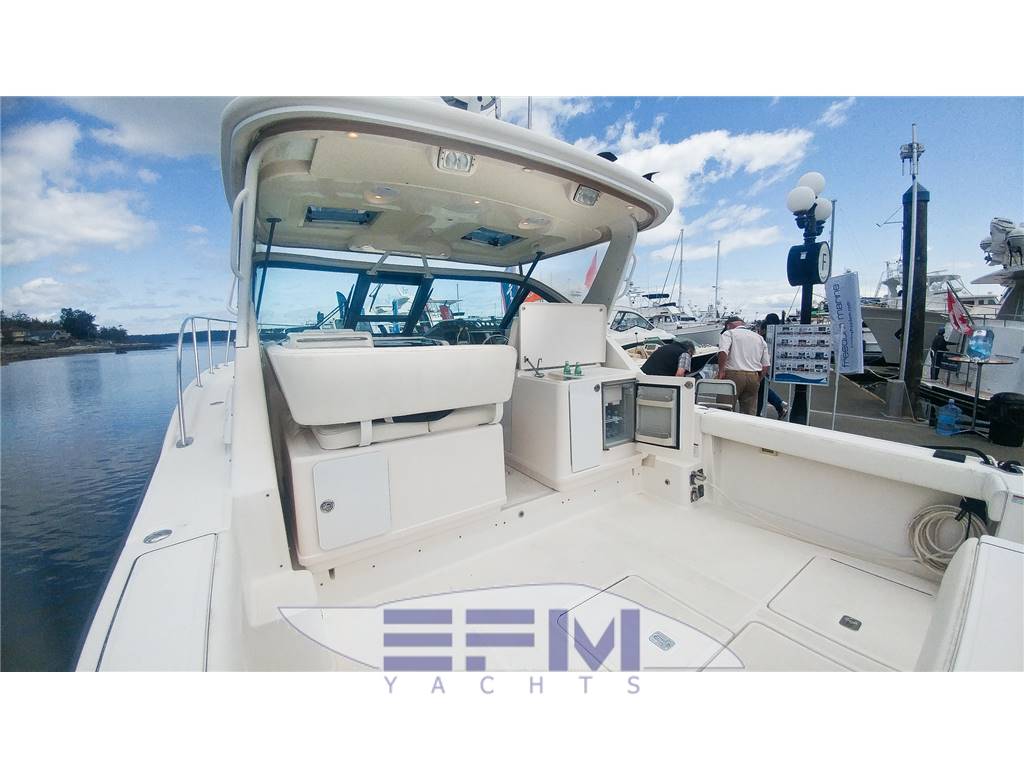

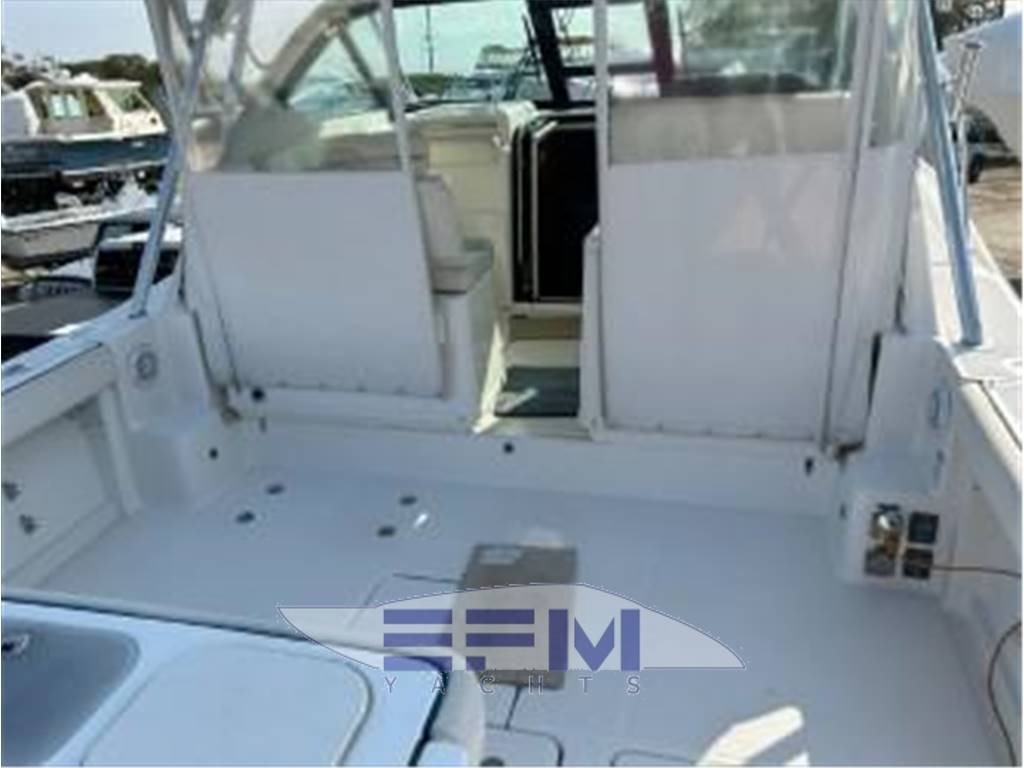

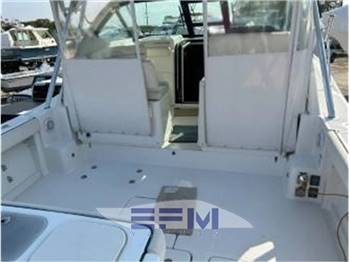

LOWER COCKPIT
• Molded-in steps to deck walkways, port, and starboard
• Fiberglass covering boards
• Cockpit coaming bolsters
• Two (2) corner chrome bronze hawse pipes
• Imtra® cockpit courtesy lighting
• Cockpit shower, hot and cold water
• Fresh water washdown outlet with S.S. fittings and 25 ft. coiled blue hose
• Self-draining cockpit
• Two (2) flush floor storage boxes
• Aluminum backing plate, 24" x 24", laminated in cockpit floor, port side of fuel access hatch
• Molded-in transom door and gate

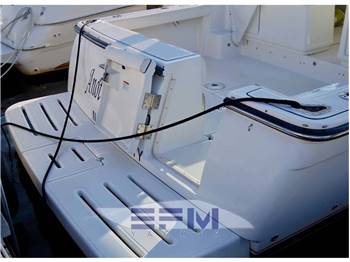

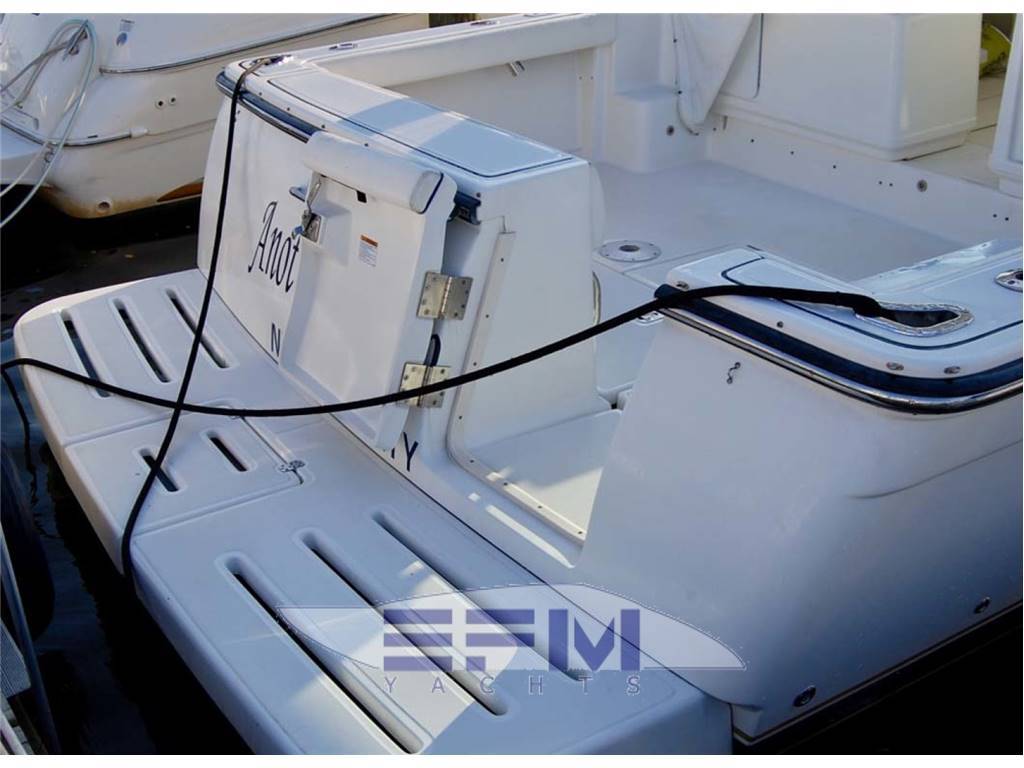

• Transom fold-down lounge

INTERIOR GROUP
• Mold and mildew-resistant vinyl hull and headliner treatment
• Teak interior
• Teak hardwood floor
• Cable TV/phone outlet
• 120V outlets throughout
• 12V lighting

SALON
• Sharp® TV
• 12V DVD player
• Marine Air Systems® 16,000 BTU air conditioner with reverse cycle heat
Fiberglass companionway steps with teak hardwood tread and hinged storage compartments below
• S.S. companionway handrail
• Clarion® AM/FM/CD stereo with remote, amp, subwoofer, two (2) interior speakers, and four (4) cockpit speakers. Includes Clarion® iPod® interface.

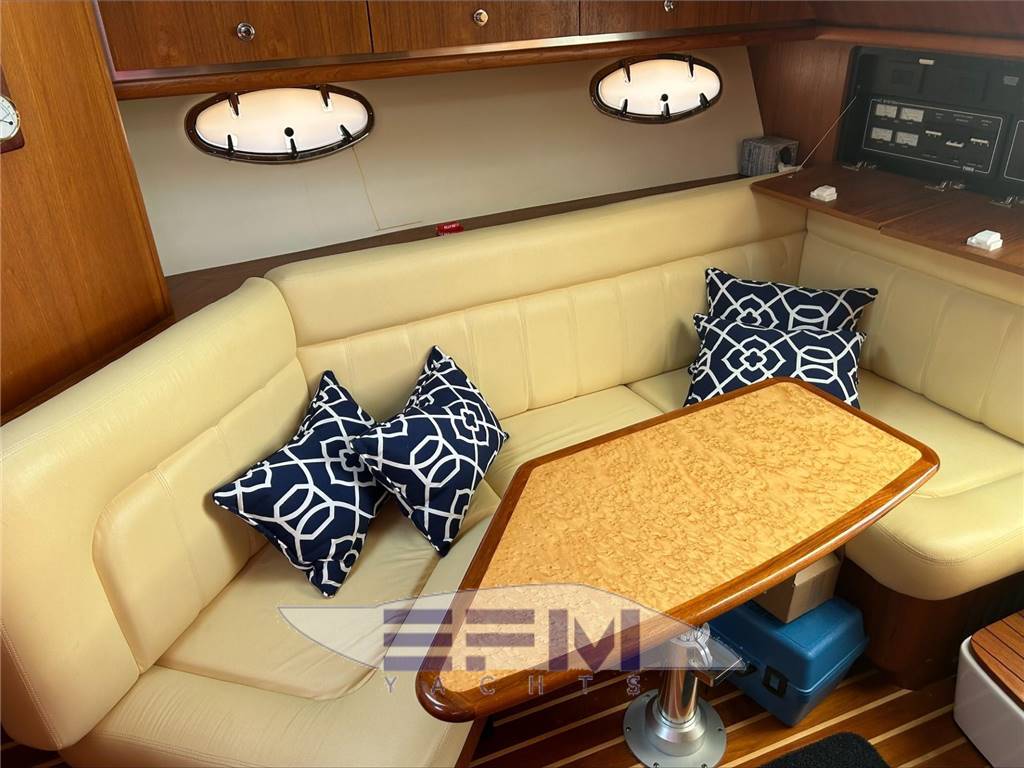

• Lounge/dinette seating to starboard with storage below and high-gloss teak/birdseye maple table. Table converts to double lower berth with hi-lo pedestal (includes berth filler cushion). Dinette backrest converts to single pullman upper berth.
• Overhead storage cabinets above dinette, starboard side

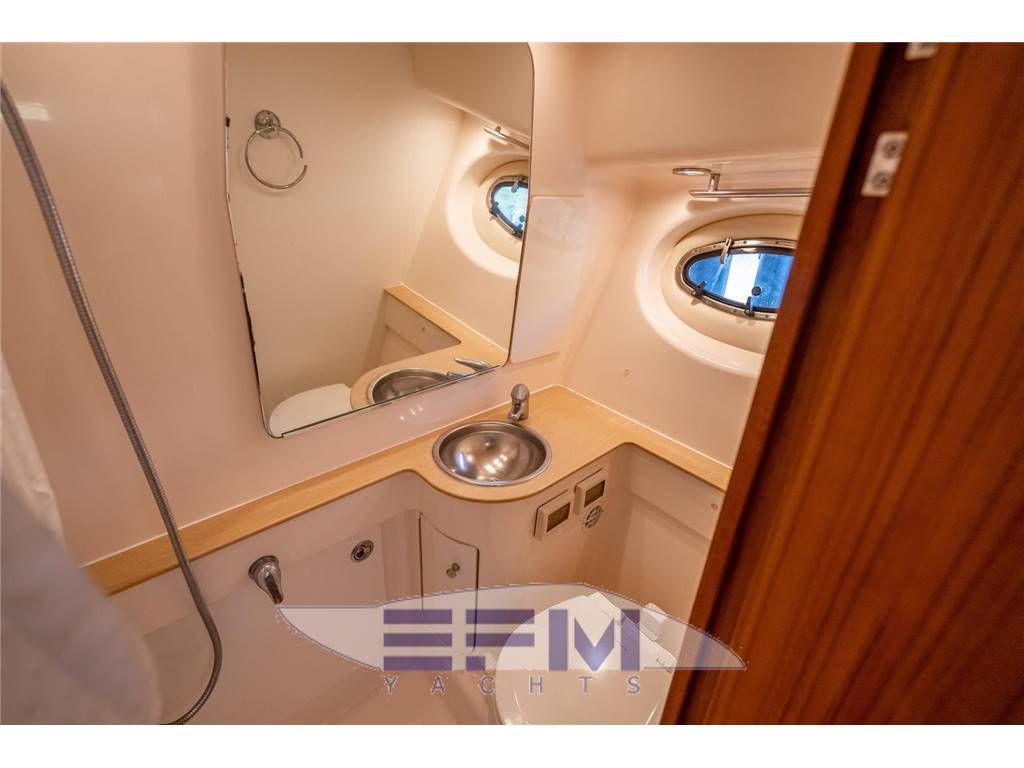

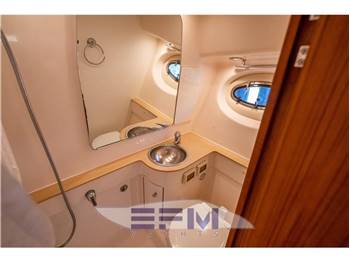

HEAD
Full frame wood entry door
• Full fiberglass head with shower sump pump and shower curtain
• Corian® countertop w/integrated sink
• Mirrored vanity above sink
• Storage compartment below sink
• Vacuflush® toilet
• Exhaust fan

Descrizione Armamenti

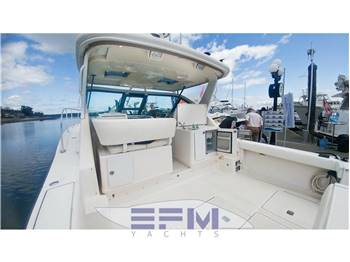

HULL, DECK, AND UPPER COCKPIT
• Molded-in hullside engine room ventilation
• Bennett Marine® 12V hydraulic recessed trim tabs
• Six (6) S.S. oval custom opening port lights with screens

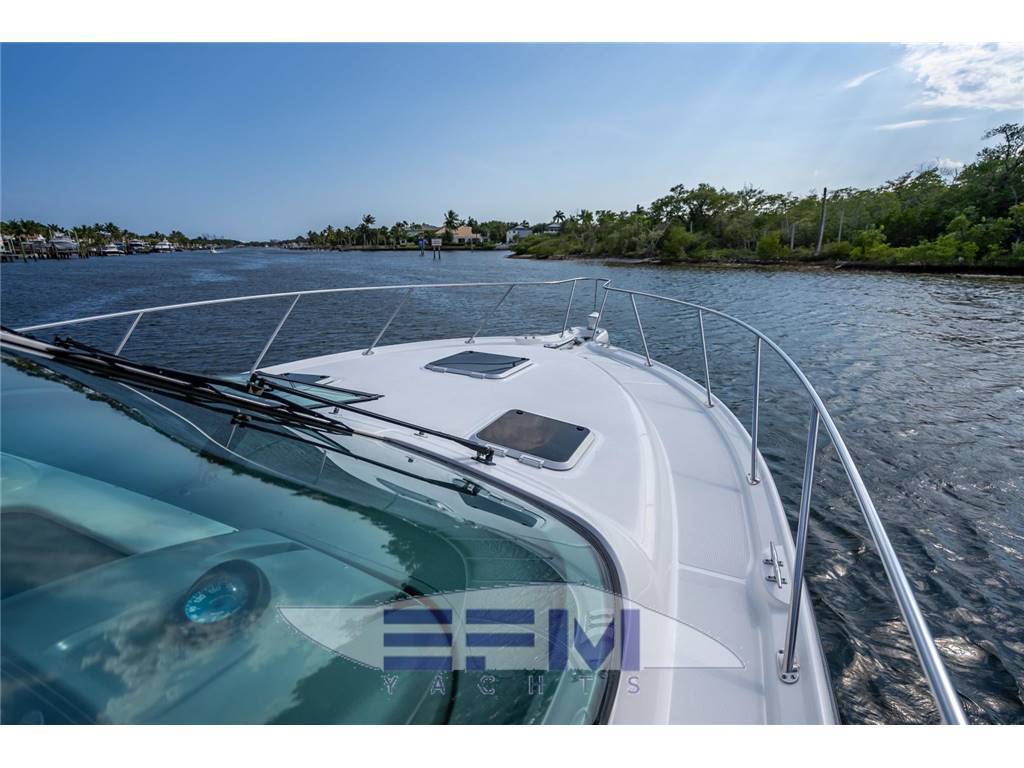

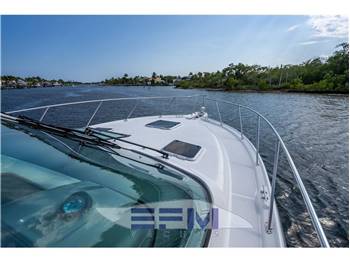

• Three (3) Bomar® extruded aluminum forward deck hatches with adjusters and built-in Ocean Air® screens and privacy covers

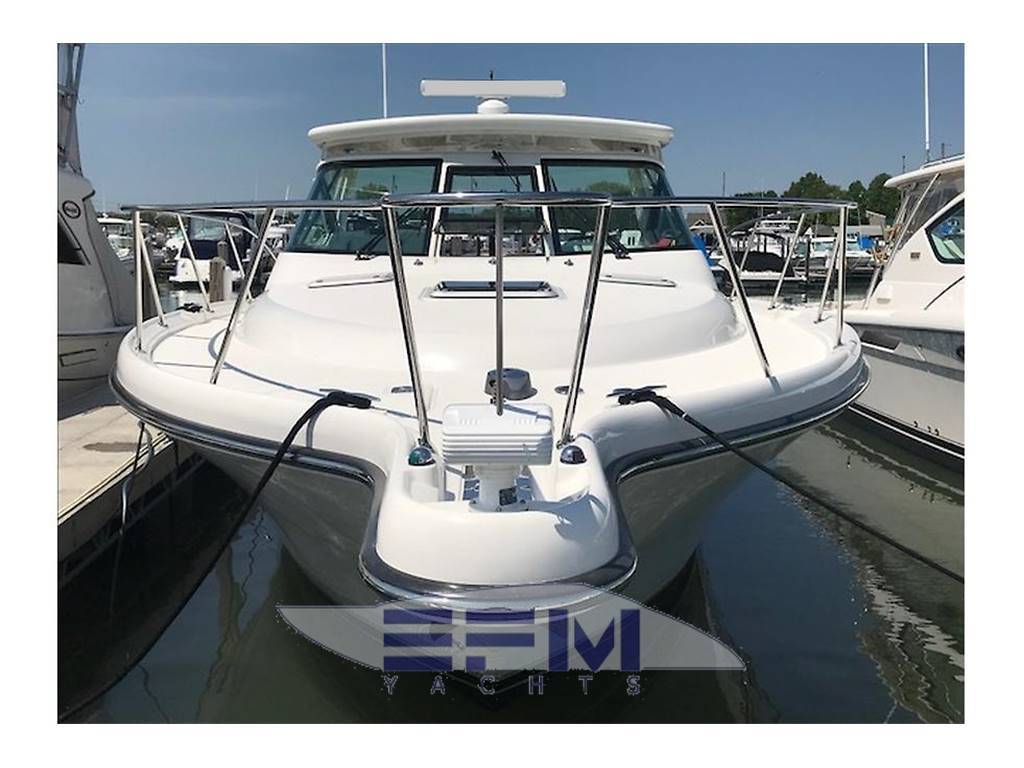

• Molded-in fiberglass bow pulpit with S.S. roller
• One-piece welded, 316L S.S. 1" bow rail with pulpit, staff, and Tiara burgee
• Flush forward anchor rode locker with overboard drain

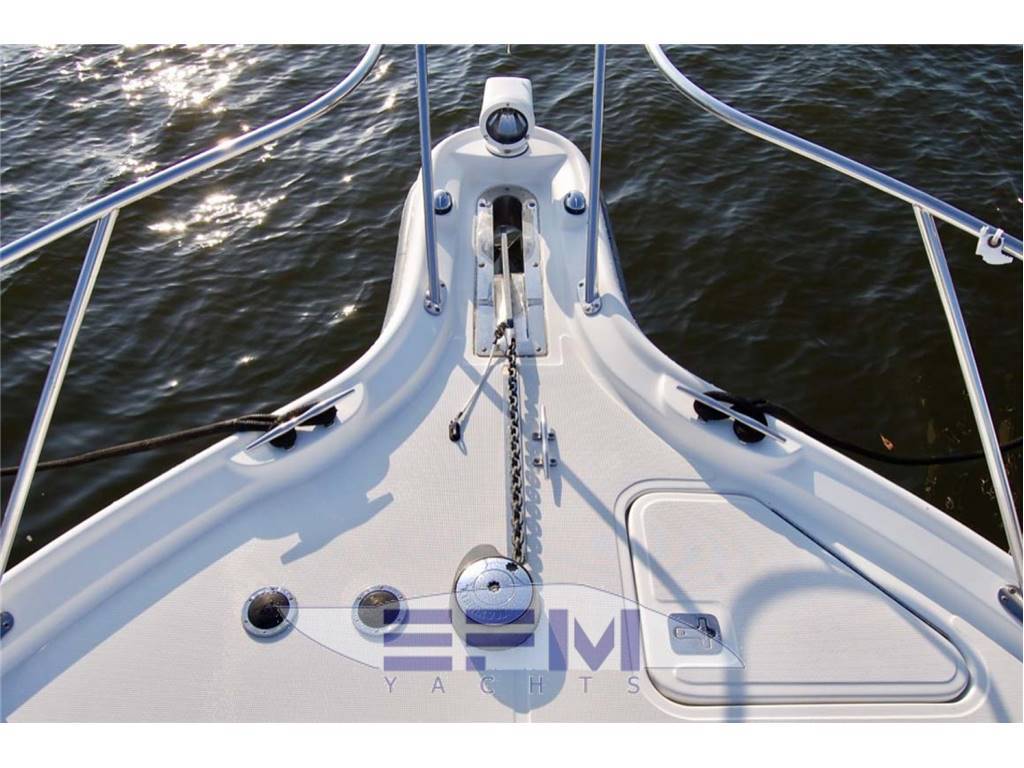

• Automatic rope/chain anchor windlass system with operation from foredeck foot pedal and remote switch at helm. Includes one (1) 8" S.S. foredeck cleat, 30' chain rode, 200' rope rode, and Delta® 22 lb. galvanized anchor.
• Black rubrail with 316L S.S. cap
• Six (6) 10" S.S. cleats for lines
• Tiara custom composite windshield frame with tempered safety glass, safety handrails, opening center section, and Imtra® windshield wiper system (three (3) washers/wipers)

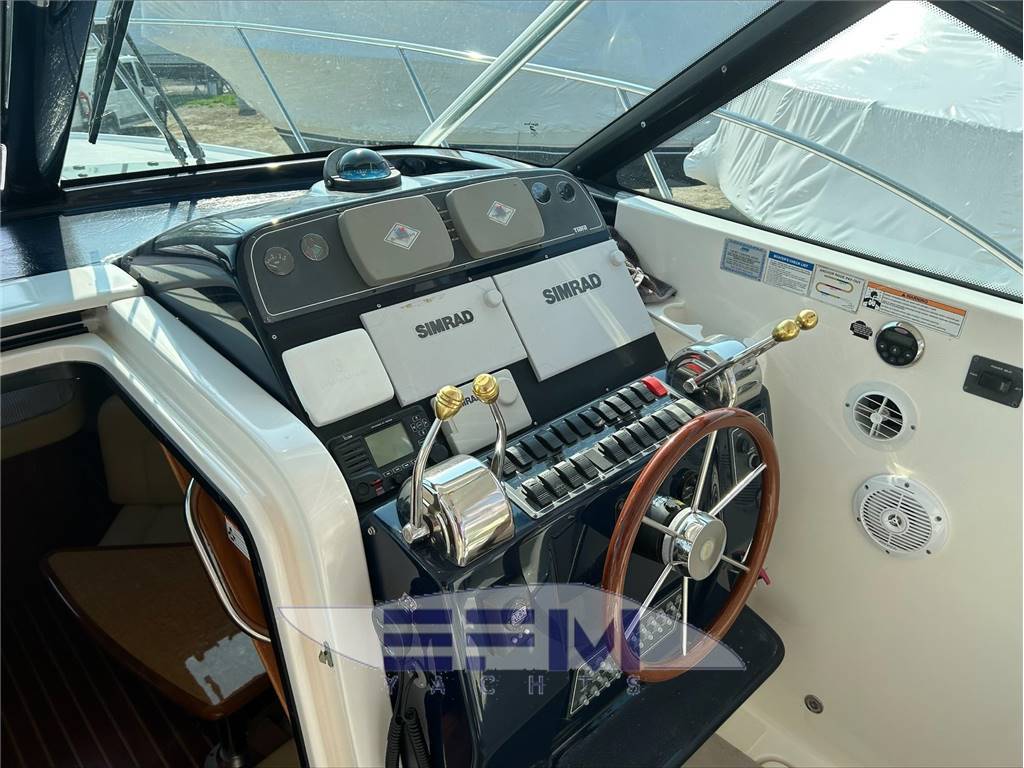

• Tiara hinged helm console with full flush mount electronics capability, two (2) drink holders, 12v outlet, and 20" S.S. destroyer steering wheel

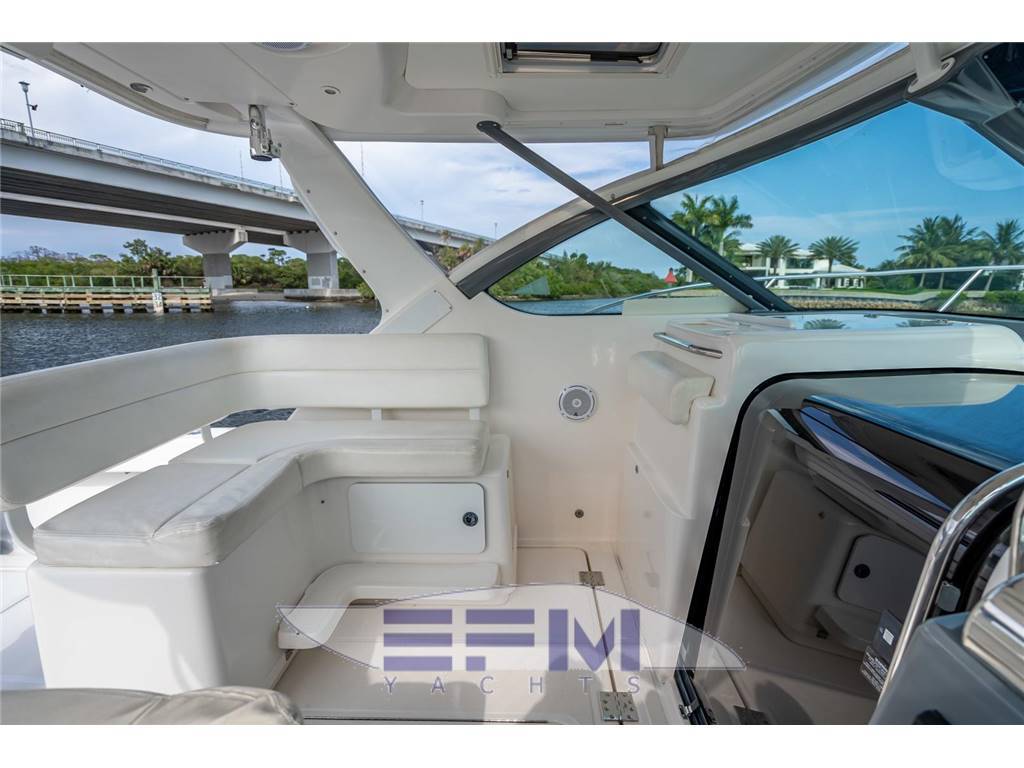

• Helm back-to-back seat locker with forward seat and aft-facing seat. Forward seat has power actuator for fore and aft adjustment.
• Centerline entry to salon with acrylic sliding companionway door, lock, screen door, and privacy cover

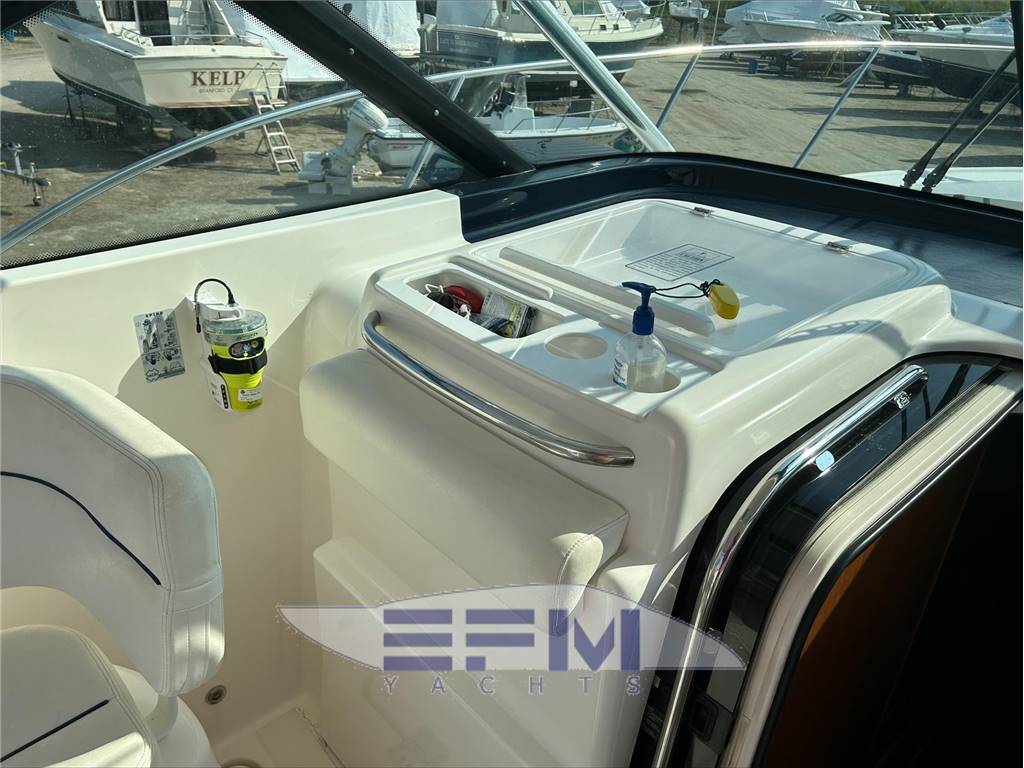

• Portside navigation center including chart storage with white acrylic lid and drink holders

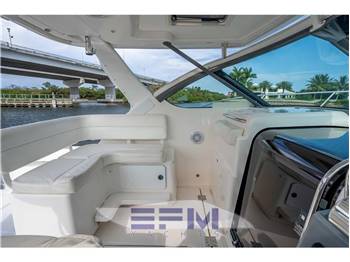

• Port curved companion lounge with jump seat and cooler below
• TV jack/outlet
• Upper cockpit cool air helm blower
• 120V GFI outlet
• Drop-down engine room access hatch from the upper cockpit
• Weather covers for helm console and all cockpit furniture

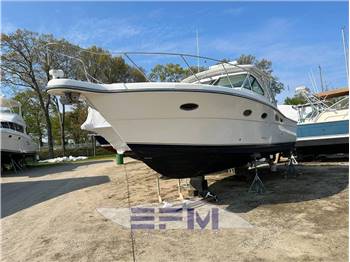

• Fresh white gelcoat hull and deck
• Black gelcoat bootline with gold accent
• Hull constructed with a gelcoat outer layer, balsa-cored hullsides, and hand-laid fiberglass using a special blended, premium resin
• Deck constructed with a gelcoat outer layer, balsa coring, and hand-laid fiberglass using a premium resin
• Tiara custom diamond pattern non-skid deck and cockpit surfaces
• Wood and foam core stringers, encapsulated by hand-laid fiberglass, are integrated to hull
• Gelcoated bilge
• Bronze seacocks on all underwater thru-hull fittings

Descrizione Strumentazione

INSTRUMENTATION, EQUIPMENT
• Tiara custom 12V and 120V master distribution panel
• Two (2) 120V 30 amp 65 ft. dockside power cords with adapter
• Cable TV/phone inlet and cabin outlets with 65 ft. dockside power cord
• TV and AM/FM antennas
• Victron® battery charger (1), 50 amp
• Two bank 12V battery system with batteries and battery switches (two (2) engine batteries and two (2) house batteries)
• Amp meters, AC and DC
• Electrical bonding system
• Reverse polarity indicators
• Zincs - transom, trim tabs, and shafts
• Teleflex® twin mechanical engine controls
• Teleflex® hydraulic steering system
• Bronze axe head rudders and struts
• Aquamet® S.S. prop shafts, 1 1/2" gas and 1 3/4" diesel
• Water-cooled shaft logs with PSS® dripless shaft seal
• Two (2) Nibral® propellers
• Engine instrumentation: Dual VDO® tachometers w/ hour meters, voltage gauges, fuel gauge, temperature gauges, engine oil pressure gauges, and rudder angle indicator.
• Ritchie® SuperSport SS-2000 compass
• High output alternators: 100 amps each for Crusader® engines,
• Engine room acoustical insulation
• Engine hatch actuator
• Two (2) Racor® fuel filters/water separators
• Two (2) raw-water intake strainers
• Vibration mounts for engines
• Plate-mounted, thru-bolted engine system
• Two (2) bilge blowers, 250 CFM each
• Three (3) automatic/manual bilge pumps with monitors at the helm, 2000 GPH each: One (1) forward, one (1) mid, one (1) aft
• One (1) composite fuel tank, 256 gallons, with electric gauge and fuel shut-off valve on top of tank
• Dockside water inlet
• One (1) freshwater tank, 38 gallons
• Fresh water pressure system with Shurflo® variable speed pump, five (5) GPM
• One (1) holding tank, 20 gallons
• Fresh water tank/holding tank monitor
• One (1) water heater with exchanger, six (6) gallons
• FE-241 agent automatic/manual fire extinguisher system in engine room (HFC-227 agent for CE)
• Three (3) handheld fire extinguishers
• Two (2) carbon monoxide detectors
• Two (2) smoke detectors
• Six (6) 5/8" x 30' black dock lines
• USCG safety and medical kit
• USCG/international navigation lighting

"Dati ritenuti corretti, ma non contrattuali. La presente non costituisce, in nessun caso, documento contrattuale."
